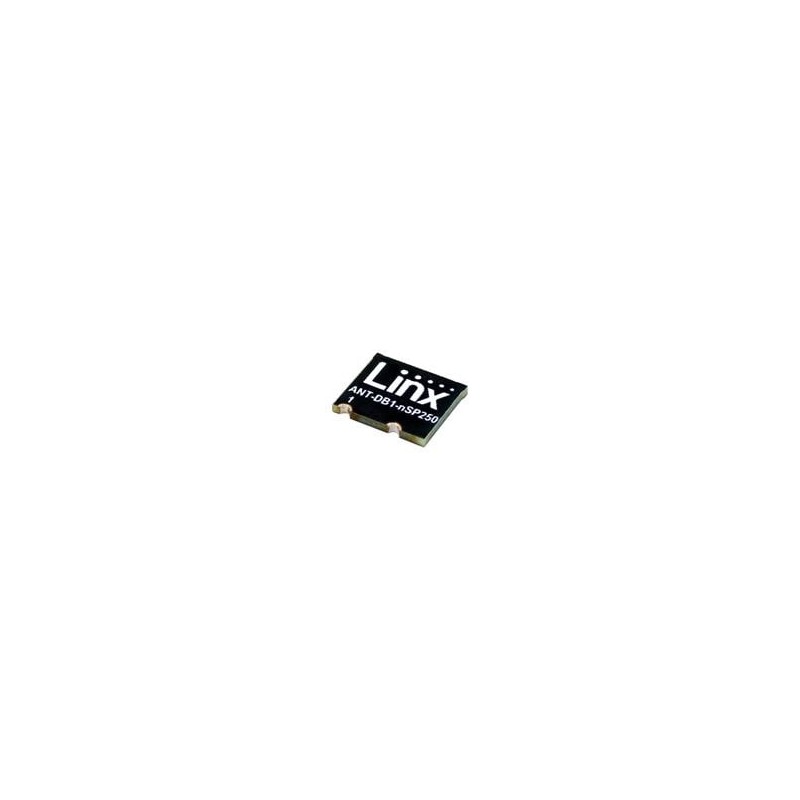

    1 pcs : ANT-DB1-nSP250-T - Antennas 2.4GHz, 5.8GHz, WiFi BT,ZigBee,WLAN,U-NII
    • 1 pcs : ANT-DB1-nSP250-T - Antennas 2.4GHz, 5.8GHz, WiFi BT,ZigBee,WLAN,U-NII

    1 pcs : ANT-DB1-nSP250-T - Antennas 2.4GHz, 5.8GHz, WiFi BT,ZigBee,WLAN,U-NII

    Allparts-UK/M/712-ANT-DB1-NSP250-T
    £10.41
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    nanoSplatch™ Antenna TE Connectivity / Linx Technologies nanoSplatch™ Antenna is designed for embedded Wi-Fi/WLAN and other 2.4GHz or 5.8GHz ISM or U-NII frequency band applications. TE Connectivity / Linx Technologies nanoSplatch Antenna uses a grounded-line technique to achieve outstanding performance in an ultra-compact surface-mount package (9.6mm x 8.4mm x 1.1mm). The nSP250 exhibits a low proximity effect with a very hemispherical radiation pattern, making it ideal for handheld devices and applications typically subject to interference.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-DB1-NSP250-T
    ANT-DB1-nSP250-T
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    8.4 mm
    Height
    1.1 mm
    Application
    Single Band, Dual Band, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring, U-NII
    Length
    9.6 mm
    Wavelength
    1/4 Wave
    Polarisation
    Linear
    Maximum Operating Temperature
    + 130 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    5 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    -
    Maximum Frequency
    5.875 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    - 1.6 dBi, - 1.8 dBi, - 1.9 dBi
    Product Category
    Antennas
    Style
    Multilayer
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Tradename
    nanoSplatch
    VSWR
    2.01, 2.21, 2.41
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    802.11, WiFi, WLAN, WiMAX
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Protocol - Sub GHz
    IoT, ISM
    Number of Bands
    3 Band
    Centre Frequency
    2.45 GHz, 5.4 GHz, 5.8 GHz
    Protocol - Cellular, NBIoT, LTE
    5G, Cellular (NBIoT, LTE)
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    Chip
    Electrical Type
    Embedded
    Ground Plane Size
    40 mm x 20 mm
