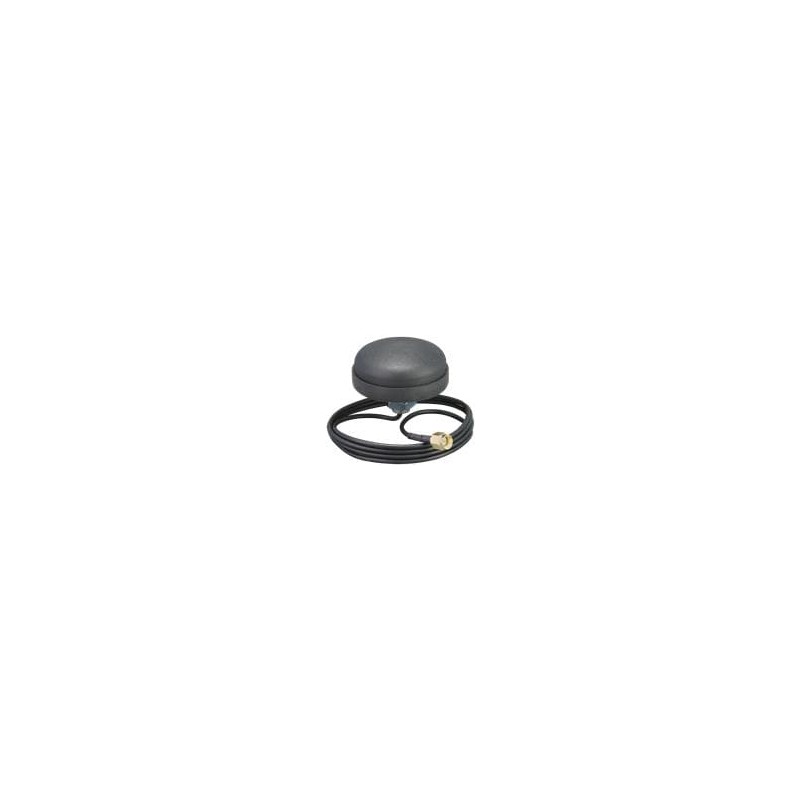

    1 pcs : ANT-5GW-SPS1-1 - Antennas 5G/4G/LTE Cellular W ideband Puck Antenn
    • 1 pcs : ANT-5GW-SPS1-1 - Antennas 5G/4G/LTE Cellular W ideband Puck Antenn

    1 pcs : ANT-5GW-SPS1-1 - Antennas 5G/4G/LTE Cellular W ideband Puck Antenn

    Allparts-UK/M/712-ANT-5GW-SPS1-1
    £54.21
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ANT-x-SPS1 Panel-Mount Antennas TE Connectivity / Linx Technologies ANT-x-SPS1 Panel-Mount Antennas are external puck-style multiband antennas designed for low-power, wide-area (LPWA) applications, including LoRaWAN® and remote control applications. The ANT-x-SPS1 devices include 3 versions: the ANT-433-SPS1, ANT-8/9-SPS1, and the ANT-5GW-SPS1. The ANT-433-SPS1 antenna performs in the 430MHz to 435MHz frequency range with ≤1.7 VSWR and -1.3dBi peak gain and serves as a 410MHz LTE antenna. The ANT-8/9-SPS1 version operates in the 862MHz to 876MHz range with ≤1.6 VSWR and 5.1dBi peak gain as well as in the 802MHz to 930MHz range with ≤2.4 VSWR and 5.2dBi peak gain. The ANT-5GW-SPS1 version operates in the 617MHz to 960MHz range with ≤3.0 VSWR and 5.4dBi peak gain as well as in the 3300MHz to 4200MHz range with ≤1.6 VSWR and 2.7dBi peak gain. The ANT-5GW-SPS1 is designed for 5G New Radio, LTE, cellular IoT, and 433MHz/868Mhz/915MHz LPWA applications.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-5GW-SPS1-1
    ANT-5GW-SPS1-1
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    54.7 mm
    Height
    9.7 mm
    Cable length
    1 m
    Application
    Private Cellular Networks, Public Safety Networks, Remote Control, Monitoring, Sensing, IoT, ISM Applications
    Length
    23.3 mm
    IP rating
    IP65, IP67
    Series
    SPS
    Maximum Operating Temperature
    + 70 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Direct / Permanent Mount
    Type
    Passive Antenna
    Product Type
    Multiprotocol Antennas
    Cable Type
    1 M RG174/U
    Maximum Frequency
    5.925 GHz
    Minimum Frequency
    410 MHz
    Termination Style
    Connector
    Gain
    5.4 dBi, 5.1 dBi, 4.2 dBi, 3.8 dBi, 2.7 dBi
    Frequency Range
    410 MHz to 5.925 GHz
    Product Category
    Antennas
    Style
    Dome
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Outdoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Antennas
    VSWR
    3.0, 2.9, 2.2, 1.8, 1.6, 1.3
    Antenna Connector Type
    SMA Male
    Protocol - WiFi - 802.11
    802.11 ah, LoRaWAN, Sigfox, WiFi, WLAN
    Protocol - Sub GHz
    IoT, ISM
    Number of Bands
    8 Band
    Centre Frequency
    420 MHz, 460 MHz, 788 MHz, 1947 MHz, 2350 MHz, 2593 MHz, 3750 MHz, 5162 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, EBS
    Mechanical Style
    Module
