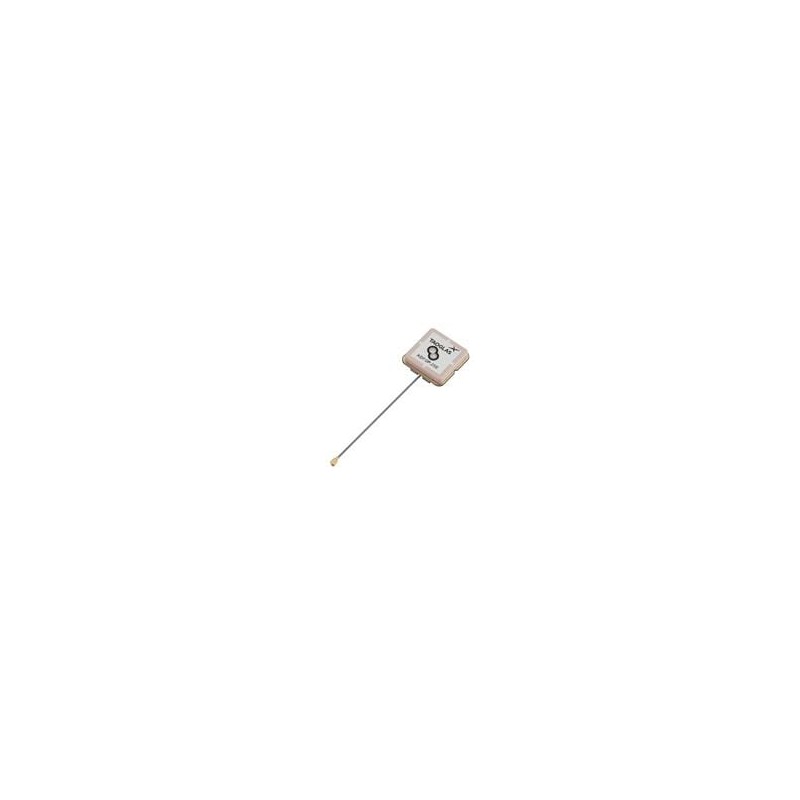

    1 pcs : ADFGP.25E.07.0060A - Antennas ACTIVE PATCH GNSS ANTENNA
    • 1 pcs : ADFGP.25E.07.0060A - Antennas ACTIVE PATCH GNSS ANTENNA

    1 pcs : ADFGP.25E.07.0060A - Antennas ACTIVE PATCH GNSS ANTENNA

    Allparts-UK/M/960-ADFGP.25E.07.06A
    Taoglas
    £49.10
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Embedded GPS Dual Pin Active Patch Antennas Taoglas Embedded GPS Dual Pin Active Patch Antennas offer a 1559MHz to 1610MHz frequency range, 50Ω impedance rating, and -40°C to +85°C operating temperature range. These antennas have a double resonance design and wide-band operation of GNSS systems including GPS (L1), GLONASS (G1), Galileo (E1), and BeiBou (B1). The patch is 25mm and uses a dual-feed configuration that combines both feeds with a 90° hybrid coupler to obtain an optimal axial ratio. The dual feed, active patch design makes these antennas ideal for next-generation GNSS devices that require excellent positional accuracy in a small form factor.
    Product Details
    Taoglas
    Allparts-UK/M/960-ADFGP.25E.07.06A
    ADFGP.25E.07.0060A
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    25 mm
    Height
    4 mm
    Cable length
    60 mm
    Application
    Autonomous Vehicles, RTK Systems, Navigation, Robotics, Transportation, Telematics
    Length
    25 mm
    Polarisation
    RHCP
    Series
    ADFGP.253
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    MIMO Antenna
    Product Type
    GNSS Antennas - GPS, GLONASS, Galileo, Beidou
    Cable Type
    RF1.13
    Maximum Frequency
    1.61 GHz
    Minimum Frequency
    1.559 GHz
    Termination Style
    Pin, Dual
    Gain
    - 1 .9 dBi, 0.5 dBi, - 0.8 dBi
    Product Category
    Antennas
    Style
    Stacked
    Packaging
    Bulk
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    100
    Subcategory
    Antennas
    REACH - SVHC
    Details
    VSWR
    2.01, 2.01, 2.01
    Antenna Connector Type
    IPEX MHF1
    Protocol - Sub GHz
    -
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GNSS, GPS
    Number of Bands
    3 Band
    Centre Frequency
    1.561 GHz, 1.57542 GHz, 1.602 GHz
    Mechanical Style
    Patch
    Electrical Type
    Active Embedded
    Ground Plane Size
    70 mm x 70 mm
