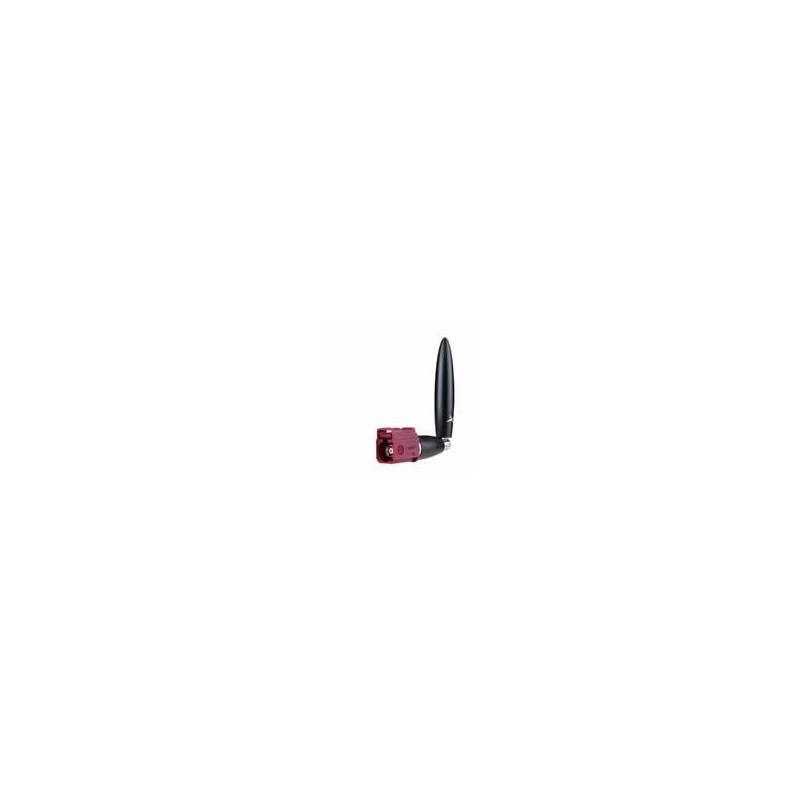

1 pcs : TG.66.0723 - Antennas TG.66 With FAKRA Code D

TG.66.0723 5G/4G Terminal-Mount Monopole Antenna Taoglas TG.66.0723 5G/4G Terminal-Mount Monopole Antenna offers a 600MHz to 6GHz frequency range and a 10W maximum input power rating. This antenna features a rotatable hinged Fakra Code D connector that allows the antenna to be rotated into the preferred orientation to avoid other antennas or objects. The TG.66.0723 has a miniature size of 70.3mm x Ø10mm with an omnidirectional radiation pattern that provides stable gain across the hemisphere. Taoglas TG.66.0723 5G/4G Monopole Antenna offers excellent performance at 5G bands with efficiencies above 45% across the entire 5G/4G spectrum when positioned on the edge of a small 120mm x 45mm ground plane.
