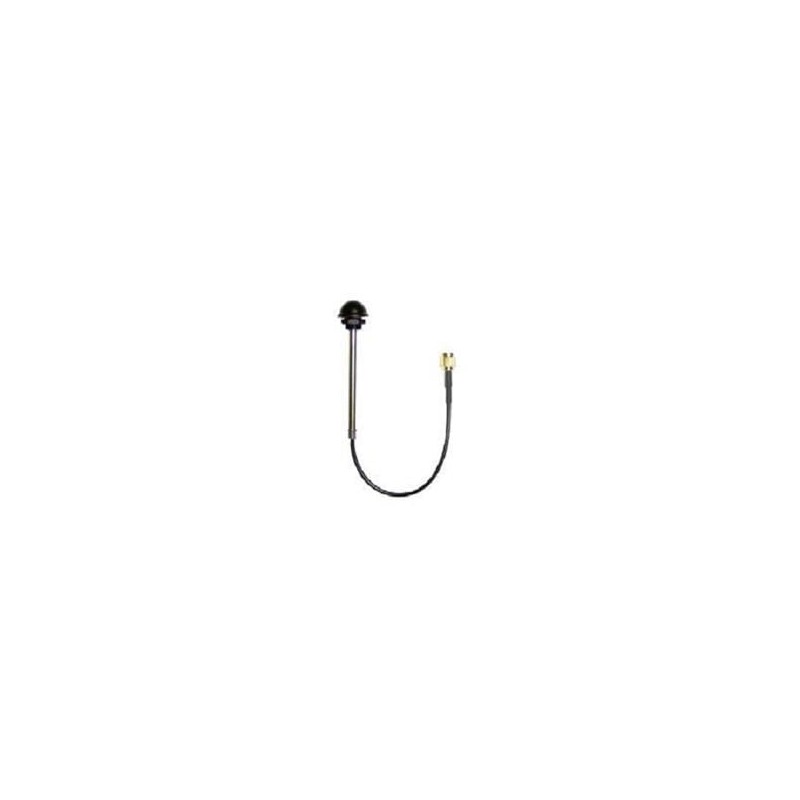

    1 pcs : ANT-2.4-WRT-SMA - Antennas 2.4GHz Compact Ant. SMA Connector
    • 1 pcs : ANT-2.4-WRT-SMA - Antennas 2.4GHz Compact Ant. SMA Connector

    1 pcs : ANT-2.4-WRT-SMA - Antennas 2.4GHz Compact Ant. SMA Connector

    Allparts-UK/M/712-ANT-2.4-WRT-SMA
    £42.87
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WRT Antennas TE Connectivity / Linx Technologies WRT Antennas are ideally suited for applications such as wireless vending, security, traffic, or power equipment that require an unobtrusive, tamper-resistant antenna solution. The WRT Antennas feature a tiny 19mm x 11mm radome that installs through a small hole on the product and is anchored by a threaded base. An adhesive foam compression ring is used to resist the elements. These WRT antennas also feature an integral counterpoise that eliminates the need for a proximity ground plane. The WRT Antennas are available in center frequencies of 868MHz, 916MHz, and 2.45GHz with coax feeds featuring SMA, RP-SMA, or custom terminations.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-2.4-WRT-SMA
    ANT-2.4-WRT-SMA
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Diameter
    19 mm
    Cable length
    216 mm
    Application
    Bluetooth, WiFi, Zigbee, Thread
    Length
    11 mm
    Bandwidth
    100 MHz
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    WRT
    Maximum Operating Temperature
    + 90 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Direct / Permanent Mount
    Type
    Passive Antenna
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    216 mm RG174
    Maximum Frequency
    2.5 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    3.4 dBi
    Product Category
    Antennas
    Style
    Stubby
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Outdoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Antennas
    Unit Weight
    13.452 g
    Part # Aliases
    L9000109-01
    VSWR
    1.9
    Antenna Connector Type
    SMA Male
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    ISM
    Number of Bands
    1 Band
    Centre Frequency
    2.45 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    Whip
    Electrical Type
    Dipole
    Ground Plane Size
    102 mm x 102 mm
