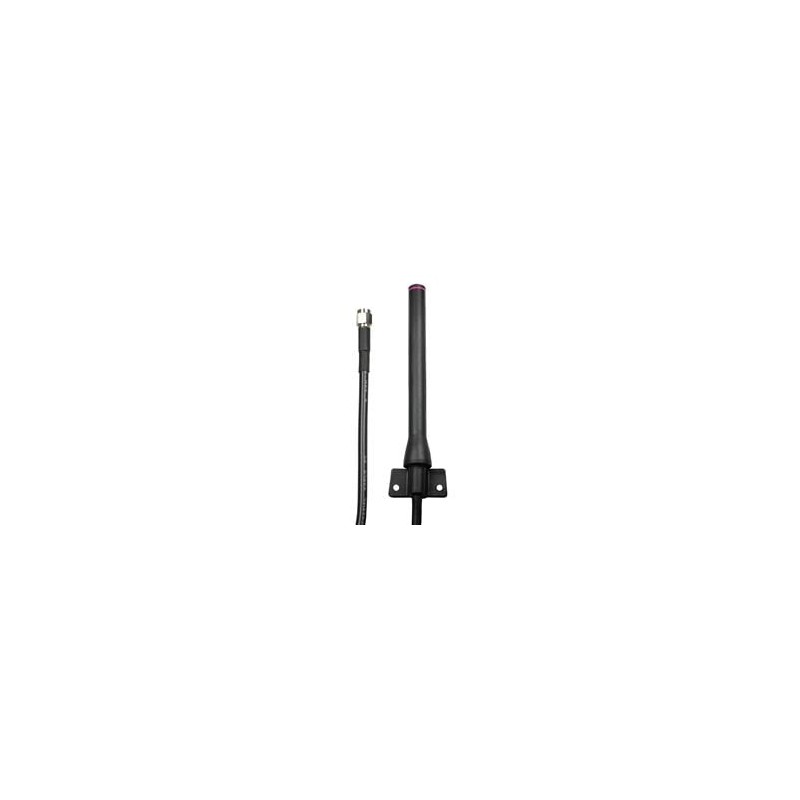

    1 pcs : ANT-2.4-ID-1000-RPS - Antennas 2.4GHz, 1m, RP-SMA
    • 1 pcs : ANT-2.4-ID-1000-RPS - Antennas 2.4GHz, 1m, RP-SMA

    1 pcs : ANT-2.4-ID-1000-RPS - Antennas 2.4GHz, 1m, RP-SMA

    Allparts-UK/M/712-ANT-2.4-ID-1-RPS
    £42.52
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ANT ID Series Antennas TE Connectivity / Linx Technologie ANT ID Series Antennas are 1/2-wave center-fed industrial dipole antennas with a weatherized design for industrial and outdoor applications. The plastic and cable are rated for a wide temperature range and UV exposure for long-term reliability. Two standard cable lengths of 1m and 2m allow the antenna to be remotely mounted in a position to achieve improved RF performance. An integrated flange makes mounting the antenna simple. ID Series antennas attach via a standard SMA or Part 15 compliant RP-SMA connector. Typical applications include outdoor meters, solar panel controls, and other sensor monitoring or control systems that require an economical, but rugged, solution.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-2.4-ID-1-RPS
    ANT-2.4-ID-1000-RPS
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Diameter
    9.5 mm
    Cable length
    1 m
    Application
    Bluetooth, WiFi, Zigbee, Thread
    Length
    119.4 mm
    IP rating
    IP67
    Bandwidth
    250 MHz
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    ANT-2.4-ID
    Maximum Operating Temperature
    + 80 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Chassis Mount
    Type
    Passive Antenna
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    1 M RG-58
    Maximum Frequency
    2.6 GHz
    Minimum Frequency
    2.35 GHz
    Termination Style
    Connector
    Gain
    3 dBi
    Product Category
    Antennas
    Style
    Straight
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Outdoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Antennas
    Unit Weight
    78.526 g
    Part # Aliases
    L9000075-01
    VSWR
    1.9
    Antenna Connector Type
    RP-SMA Male
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    ISM
    Number of Bands
    1 Band
    Centre Frequency
    2.45 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    Whip
    Electrical Type
    Dipole
