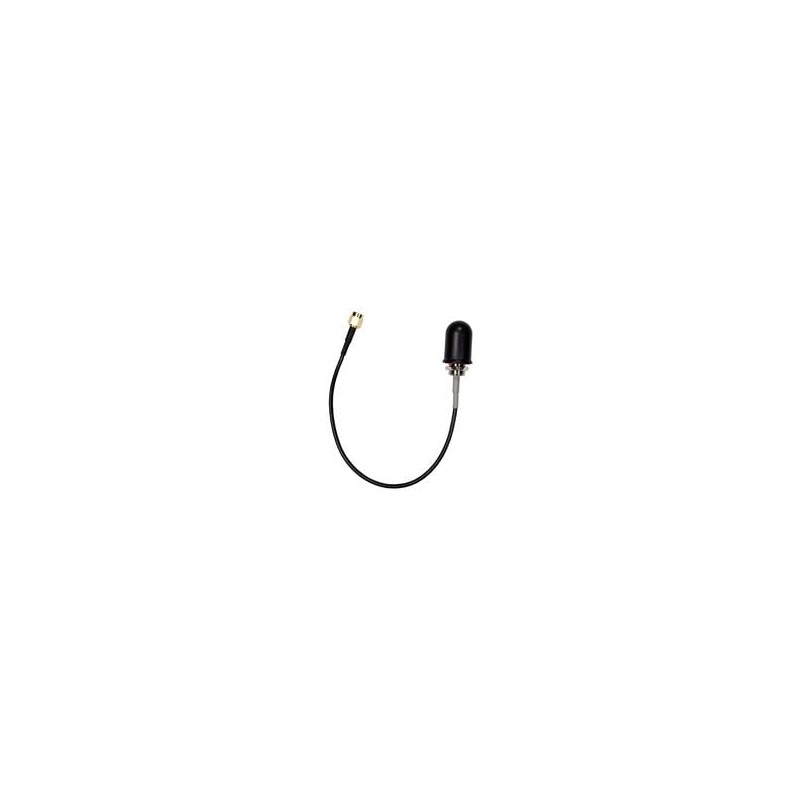

    1 pcs : ANT-DB1-WRT-MON-SMA - Antennas 2.4GHz/5.8GHz WRT-MON Series Low Profile Dome 1/4 Wave Monopole Antenna, SMA Connector
    • 1 pcs : ANT-DB1-WRT-MON-SMA - Antennas 2.4GHz/5.8GHz WRT-MON Series Low Profile Dome 1/4 Wave Monopole Antenna, SMA Connector

    1 pcs : ANT-DB1-WRT-MON-SMA - Antennas 2.4GHz/5.8GHz WRT-MON Series Low Profile Dome 1/4 Wave Monopole Antenna, SMA Connector

    Allparts-UK/M/712-ANT-DB1WRTMONSMA
    £38.34
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WRT Dual-Band Antennas TE Connectivity / Linx Technologies WRT Dual-Band Antennas support legacy 2.4GHz Wi-Fi® and 5.8GHz band applications in a single compact antenna. These antennas are installed through a small hole in the enclosure and include an integrated closed-cell PSA ring to seal against the enclosure. The WRT antennas feature an 8.5' long coax cable with an RP-SMA, SMA, or u.FL/MHF-compatible connector. These low-profile antennas with tamper-resistant designs are perfect for challenging applications like wireless vending, security, traffic, and power equipment. The dual-band WRT antennas from TE Connectivity / Linx Technologies are available in ANT-DB1-WRT and ANT-DB1-WRT-MON variants.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-DB1WRTMONSMA
    ANT-DB1-WRT-MON-SMA
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Diameter
    19 mm
    Cable length
    216 mm
    Application
    WiFi, Bluetooth, Zigbee, Thread, 802.15.4, 802.11
    Length
    35.5 mm
    Bandwidth
    100 MHz, 150 MHz
    Wavelength
    1/4 Wave
    Polarisation
    Linear
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Direct / Permanent Mount
    Type
    Passive Antenna
    Power Rating
    5 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    216 mm RG174
    Maximum Frequency
    5.875 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    1 dBi, 2.8 dBi
    Product Category
    Antennas
    Style
    Mini Dome
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Outdoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Antennas
    Unit Weight
    22.533 g
    Part # Aliases
    L9000168-01
    VSWR
    2
    Antenna Connector Type
    SMA Male
    Protocol - WiFi - 802.11
    802.11, WiFi, WLAN, WiMAX
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM
    Number of Bands
    2 Band
    Centre Frequency
    2.45 GHz, 5.8 GHz
    Protocol - Cellular, NBIoT, LTE
    Cellular (NBIoT, LTE)
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    Round
    Electrical Type
    Monopole
    Ground Plane Size
    102 mm x 102 mm
