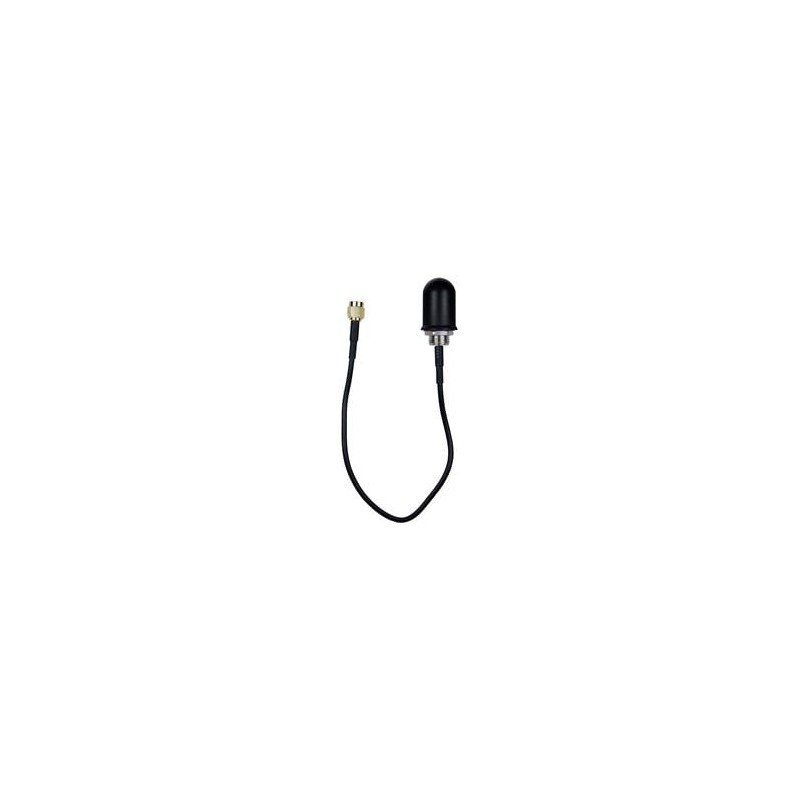

    1 pcs : ANT-2.4-WRT-MON-RPS - Antennas 2.4 GHz Antenna WRT Monopole RP-SMA
    • 1 pcs : ANT-2.4-WRT-MON-RPS - Antennas 2.4 GHz Antenna WRT Monopole RP-SMA

    1 pcs : ANT-2.4-WRT-MON-RPS - Antennas 2.4 GHz Antenna WRT Monopole RP-SMA

    Allparts-UK/M/712-ANT2.4WRTMON-RPS
    £38.18
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WRT-MON Monopole Antenna TE Connectivity / Linx Technologies WRT-MON Monopole Antennas are compact and tamper-resistant. These require a proximity ground plane, which dramatically reduces the space required inside the product. The antenna installs through a small hole on the product and is anchored by a threaded metal base connected to the coax cable shield. An adhesive foam compression ring resists the elements. The TE Connectivity / Linx Technologies WRT-MON Series Monopole Antenna is available in 2.45GHz and is attached to an 8.5in long coax cable with an RP-SMA, SMA, or U.FL/MHF-compatible connector on the other end. These antennas are ideal for applications like wireless vending machines, traffic equipment, and power equipment where space is limited and security is important.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT2.4WRTMON-RPS
    ANT-2.4-WRT-MON-RPS
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Diameter
    19 mm
    Cable length
    216 mm
    Application
    Bluetooth, WiFi, Zigbee, Thread
    Length
    35.5 mm
    Bandwidth
    100 MHz
    Wavelength
    1/4 Wave
    Polarisation
    Linear
    Series
    WRT-MON
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Direct / Permanent Mount
    Type
    Passive Antenna
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Technology
    Monopole
    Cable Type
    216 mm RG174
    Maximum Frequency
    2.54 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    0.8 dBi
    Product Category
    Antennas
    Style
    Stubby
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Outdoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Antennas
    Unit Weight
    20.870 g
    Part # Aliases
    L9000105-01
    VSWR
    1.9
    Antenna Connector Type
    RP-SMA Male
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    ISM
    Number of Bands
    1 Band
    Centre Frequency
    2.45 GHz
    Protocol - Cellular, NBIoT, LTE
    Cellular (NBIoT, LTE)
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    Whip
    Electrical Type
    Monopole
    Ground Plane Size
    102 mm x 102 mm
