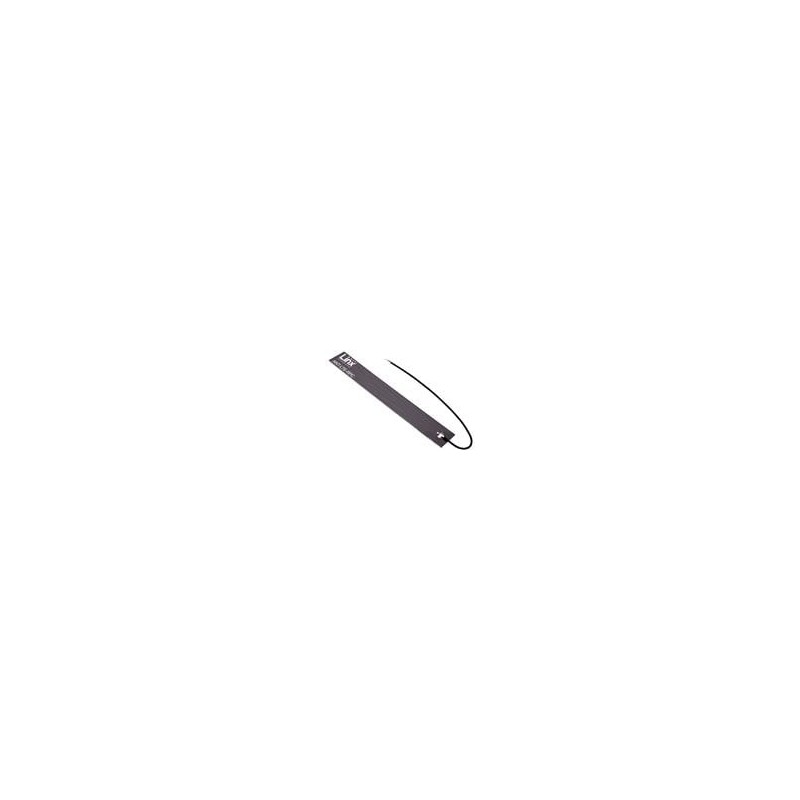

    1 pcs : ANT-LTE-RPC-UFL - Antennas ANTENNA LTE RPC PCB ADHES 100M
    • 1 pcs : ANT-LTE-RPC-UFL - Antennas ANTENNA LTE RPC PCB ADHES 100M

    1 pcs : ANT-LTE-RPC-UFL - Antennas ANTENNA LTE RPC PCB ADHES 100M

    Allparts-UK/M/712-ANT-LTE-RPC-UFL
    £17.98
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ANT-LTE-RPC LTE/LPWA Embedded Dipole Antennas TE Connectivity / Linx Technologies ANT-LTE-RPC LTE/LPWA Embedded Dipole Antennas are rigid, adhesive-backed, multiband cellular and cellular IoT antennas (LTE-M and NB-IoT) for embedded applications requiring 600MHz, 700MHz, and 800MHz band performance. The antennas also support low-power, wide-area (LPWA) networking at 868MHz and 915MHz, 2.4GHz ISM, and global navigation systems (GNSS/GPS). A connection is made to the radio via a 100mm long, 1.13mm coaxial cable terminated in an MHF1/U.FL-compatible plug connector or unterminated, trimmed for PCB mounting.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-LTE-RPC-UFL
    ANT-LTE-RPC-UFL
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    14.9 mm
    Height
    0.8 mm
    Cable length
    100 mm
    Application
    Worldwide Cellular, Low Power Wide Area, ISM Applications, Smart Home Networking, Global Navigation
    Length
    98.4 mm
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    RPC
    For Use With
    LTE, GSM, UMTS, 2G/3G/4G, NB-IoT, LTE-M, GPS, GNSS, GLONASS, Beidou, COMPASS, GALILEO, LPWA, LoRaWAN
    Maximum Operating Temperature
    + 65 C
    Minimum Operating Temperature
    - 20 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    100 mm RF1.13
    Maximum Frequency
    3.8 GHz
    Minimum Frequency
    600 MHz
    Termination Style
    Connector
    Gain
    3.6 dBi, 4.9 dBi, 6.3 dBi, 5.1 dBi, 5 dBi, 4.6 dBi, 3.1 dBi
    Product Category
    Antennas
    Style
    I-Bar
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Antennas
    Unit Weight
    32.095 g
    VSWR
    2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1
    Antenna Connector Type
    IPEX MHF1
    Protocol - WiFi - 802.11
    802.11, LoRaWAN, SigFox, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    RFID, IoT, ISM
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GPS
    Number of Bands
    7 Band
    Centre Frequency
    600 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1.575 GHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.3 GHz, 2.4 GHz, 2.5 GHz, 3.3 GHz, 3.4 GHz, 3.5 GHz, 3.6 GHz
    Protocol - Cellular, NBIoT, LTE
    Cellular (NBIoT, LTE), GSM, UMTS, CBRS
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded Dipole
