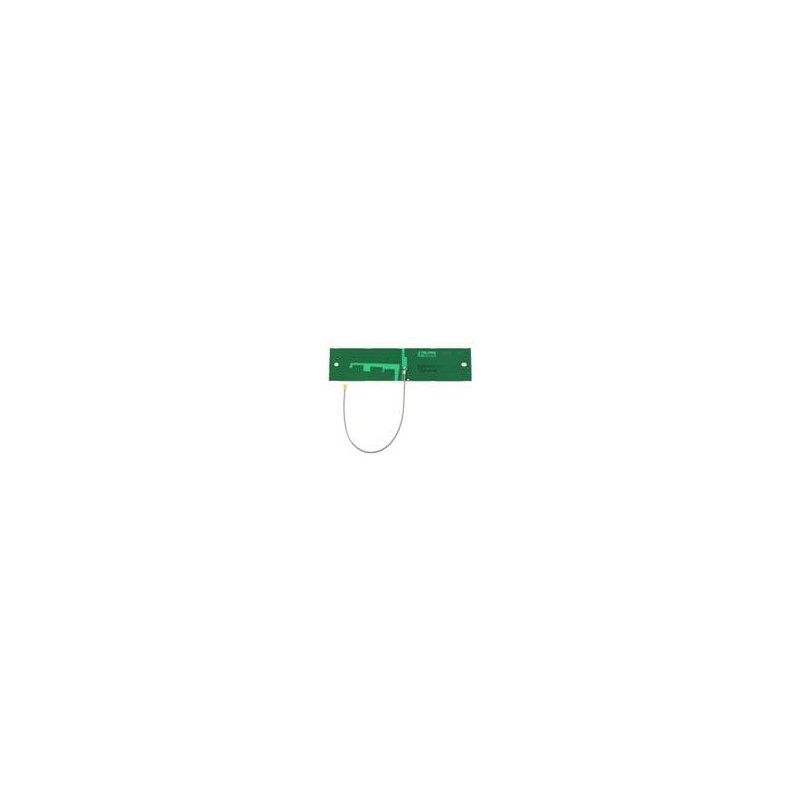

    1 pcs : W3554B0140T - Antennas INT 0.698-6GHz UFL LTE w/Adhesive
    • 1 pcs : W3554B0140T - Antennas INT 0.698-6GHz UFL LTE w/Adhesive

    1 pcs : W3554B0140T - Antennas INT 0.698-6GHz UFL LTE w/Adhesive

    electronicparts-UK/M/673-W3554B0140T
    £16.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    5G Application Solutions Pulse Electronics 5G Antennas operate at a 617MHz to 7125MHz frequency range and have up to 83% efficiency. These antennas are designed for emerging 5G networks and support the CBRS band for shared spectrum LTE networks. Pulse Electronics 5G antenna products include Candy Bar vehicular multiband antennas, PCB/FPC antennas, composite antennas, sharkfin / vehicular antennas, and stick antennas with multiple connector options. These antenna solutions are ideal for consumer devices, automotive electronics, industrial surveillance, tracking, navigation, the Internet of Things (IoT), enterprise routers, and small cell applications.
    Product Details
    Pulse Electronics
    electronicparts-UK/M/673-W3554B0140T
    W3554B0140T
    10 Items

    Data sheet

    Manufacturer
    PULSE
    Impedance
    50 Ohms
    Width
    30 mm
    Height
    0.2 mm
    Application
    Cellular Applications, Satellite, Wireless Applications
    Length
    120 mm
    Polarisation
    Vertical
    Series
    W3554
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    5 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    143 mm RF1.13
    Maximum Frequency
    6 GHz
    Minimum Frequency
    698 MHz
    Termination Style
    Connector
    Gain
    1.9 dBi, 2.5 dBi, 3.2 dBi, 3.3 dBi, 3.5 dBi
    Product Category
    Antennas
    Style
    T-Bar
    Packaging
    Bulk
    RoHS
    Details
    Brand
    Pulse Electronics
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    10
    Subcategory
    Antennas
    Unit Weight
    1.500 g
    Antenna Connector Type
    U.FL
    Protocol - WiFi - 802.11
    802.11, LoRaWAN, SigFox, WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, RFID, U-NII
    Number of Bands
    5 Band
    Centre Frequency
    850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz,3550 MHz, 5600 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
