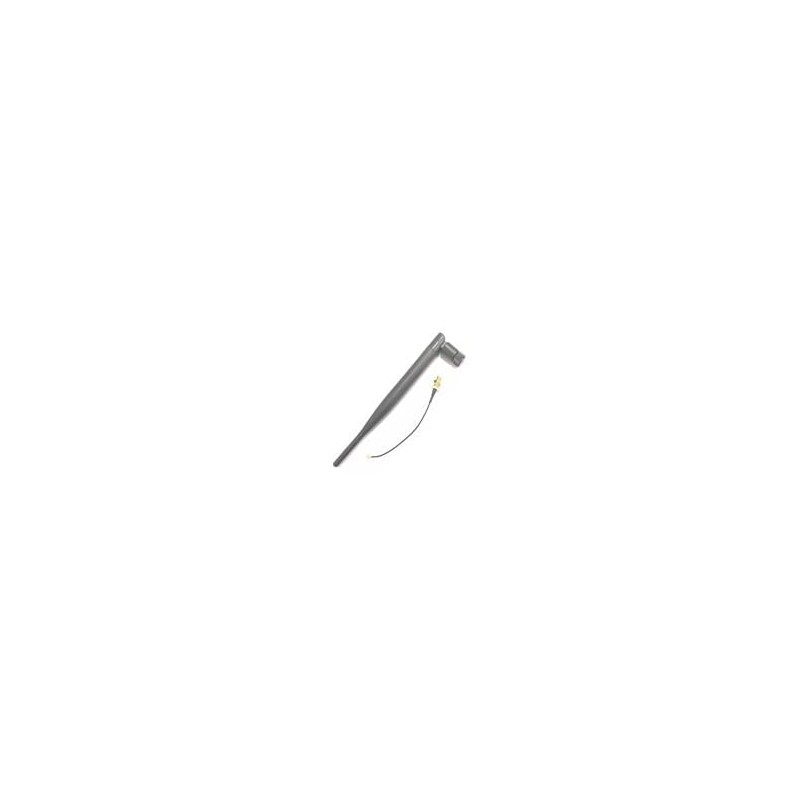

    1 pcs : ANT020 - Antennas Antenna ANT020
    • 1 pcs : ANT020 - Antennas Antenna ANT020

    1 pcs : ANT020 - Antennas Antenna ANT020

    Allparts-UK/M/308-ANT020
    Fanstel
    £16.58
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    BT840 nRF52840 BLE 5 Modules Fanstel BT840 nRF52840 BLE 5 Modules are an advanced, highly flexible solution for demanding ultra-low power, ultra-long range, and higher throughput applications for IoT applications. A cryptographic accelerator is embedded for industry-grade security. BT840 is a low cost, small size, short range alternative to the BT840F. Both have identical soldering pad footprints. BT840E is a sister module with an u.FL connector for external antenna. BT840F uses a superior PCB trace antenna which in the BT832F module proved to have the longest range at +4dBm of transmission power at a data rate of 1Mbps.
    Product Details
    Fanstel
    Allparts-UK/M/308-ANT020
    ANT020
    10 Items

    Data sheet

    Manufacturer
    Fanstel
    Impedance
    50 Ohms
    Width
    17 mm
    Height
    13.5 mm
    Cable length
    100 mm
    Application
    RF Antenna
    Length
    30 mm
    Polarisation
    Vertical
    For Use With
    BT840E
    Maximum Operating Temperature
    + 60 C
    Minimum Operating Temperature
    - 30 C
    Mounting Style
    Panel Mount
    Type
    Passive Antenna
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    100 mm Coax
    Maximum Frequency
    2.5 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    2 dBi
    Product Category
    Antennas
    Style
    Stubby
    Brand
    Fanstel
    Product
    Indoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    100
    Subcategory
    Antennas
    Unit Weight
    10.017 g
    Antenna Connector Type
    SMA Male
    Protocol - WiFi - 802.11
    WiFi
    Number of Bands
    1 Band
    Mechanical Style
    Whip
