    1 pcs : ANT-GNCP-TH258L15 - Antennas GNSS L1/L5 Dual-Band Radiating Patch Ceramic Patch Antenna, Internal/Embedded Solder Mount,
    • 1 pcs : ANT-GNCP-TH258L15 - Antennas GNSS L1/L5 Dual-Band Radiating Patch Ceramic Patch Antenna, Internal/Embedded Solder Mount,

    1 pcs : ANT-GNCP-TH258L15 - Antennas GNSS L1/L5 Dual-Band Radiating Patch Ceramic Patch Antenna, Internal/Embedded Solder Mount,

    Allparts-UK/M/712-ANT-GNCPTH258L15
    £16.30
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description

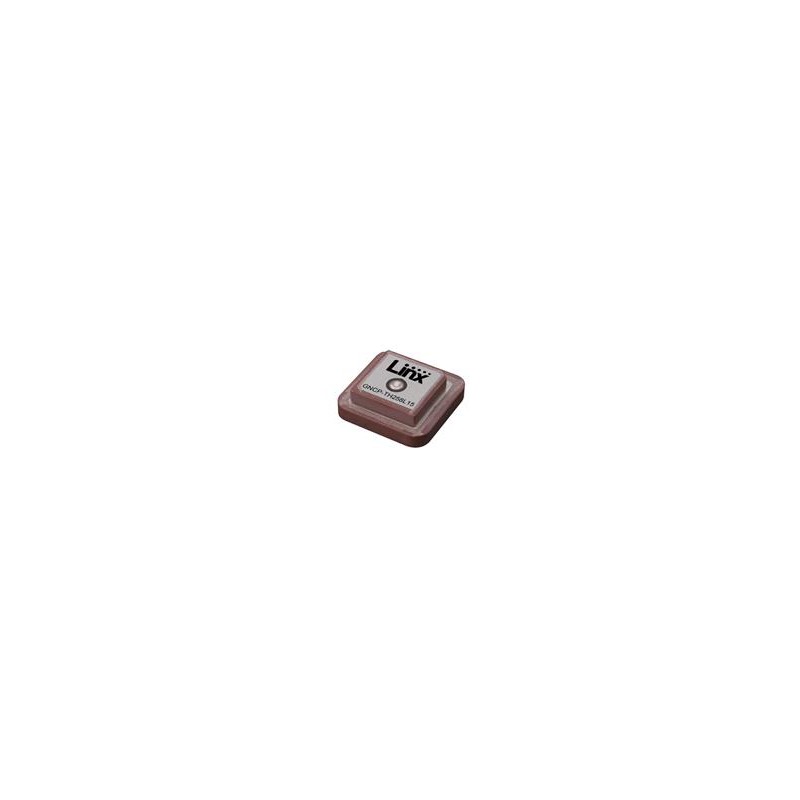

    ANT-GNCP-TH258L L1/L5 Ceramic Patch GNSS Antenna TE Connectivity / Linx Technologies ANT-GNCP-TH258L L1/L5 Ceramic Patch Antenna is a stacked ceramic patch antenna for GPS/GLONASS/GALILEO/BeiDou, IRNSS, QZSS global navigation satellite system (GNSS) operation in the L1 and L5 frequency bands. TE Connectivity / Linx Technologies ANT-GNCP-TH258L GNSS Antenna provides excellent gain and radiation pattern performance, supporting solutions with high location accuracy, rapid satellite signal and lock, and quick time to first fix. ANT-GNCP-TH258L15 offers an extended temperature range up to +105°C for compliance to automotive standard AEC-Q200 Grade 2. The antenna is mounted via an attached adhesive patch and has a solder pin signal connection.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-GNCPTH258L15
    ANT-GNCP-TH258L15
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    25.1 mm
    Height
    8 mm
    Application
    Global Navigation, Timing Solutions
    Length
    25.1 mm
    Polarisation
    RHCP
    Series
    GNSSCP
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Product Type
    GNSS Antennas - GPS, GLONASS, Galileo, Beidou
    Cable Type
    -
    Maximum Frequency
    1.60868 GHz, 1.183 GHz
    Minimum Frequency
    1.5531 GHz, 1.17 GHz
    Termination Style
    Pin
    Gain
    5.6 dBi, 1 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    Tray
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    125
    Subcategory
    Antennas
    VSWR
    5.9, 6.4
    Antenna Connector Type
    -
    Protocol - Sub GHz
    -
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GPS, IRNSS, QZSS
    Number of Bands
    2 Band
    Centre Frequency
    1.58089 GHz, 1.17645 GHz
    Mechanical Style
    Patch
    Electrical Type
    Embedded
