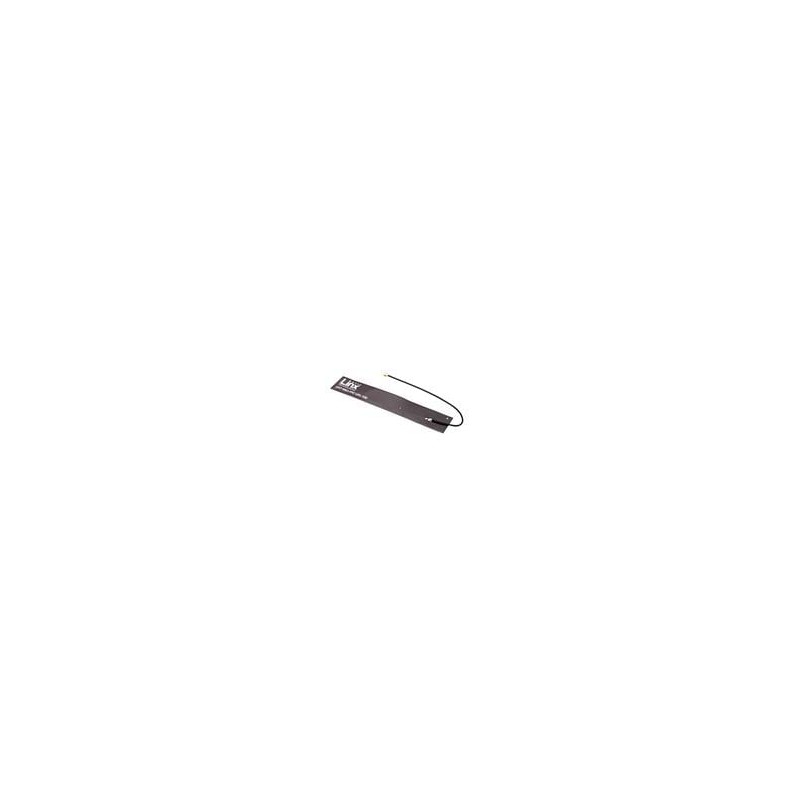

    1 pcs : ANT-W63-FPC-UFL-100 - Antennas 6GHz, 5GHz, 2.4GHz WiFi flexible adhesive antenna, 100 mm long 1.13 mm coax, U.FL/MHF1 co
    • 1 pcs : ANT-W63-FPC-UFL-100 - Antennas 6GHz, 5GHz, 2.4GHz WiFi flexible adhesive antenna, 100 mm long 1.13 mm coax, U.FL/MHF1 co

    1 pcs : ANT-W63-FPC-UFL-100 - Antennas 6GHz, 5GHz, 2.4GHz WiFi flexible adhesive antenna, 100 mm long 1.13 mm coax, U.FL/MHF1 co

    Allparts-UK/M/712-ANTW63FPCUFL-100
    £15.60
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ANT-W63-FPC-UFL-100 WiFi 6 Antenna TE Connectivity / Linx Technologies ANT-W63-FPC-UFL-100 WiFi 6 Antenna is a flexible embedded multiband antenna that offers excellent performance for WiFi 6E applications in the 6GHz band. The flexibility and adhesive backing makes the antenna easy to mount in unique and custom enclosures while enabling protection from tampering or accidental damage. This WiFi 6 antenna provides a ground plane independent dipole embedded antenna solution compared with performance to an external antenna.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANTW63FPCUFL-100
    ANT-W63-FPC-UFL-100
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    20 mm
    Height
    49 mm
    Cable length
    100 mm
    Application
    Wireless Applications, U-NII, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring
    Length
    110 mm
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    W63FPC
    For Use With
    WiFi 6, WiFi 6E, 802.11ax, WiFi, WiFi 4, WiFi 5, 802.11, 802.15.4, Bluetooth
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    100 mm RF1.13
    Maximum Frequency
    7.125 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    6.1 dBi, 6.1 dBi, 6.9 dBi
    Product Category
    Antennas
    Style
    I-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Antennas
    Unit Weight
    1.500 g
    Part # Aliases
    L9000230-01
    VSWR
    1.2, 3.3, 2.6
    Antenna Connector Type
    MHF / U.FL
    Protocol - WiFi - 802.11
    802.11 b/g/n/ac/ax, WiFi 4, WiFi 5, WiFi 6, WiFi 6E
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, U-NII
    Number of Bands
    3 Band
    Centre Frequency
    2.4 GHz, 5 GHz, 6 GHz
    Protocol - Cellular, NBIoT, LTE
    2G/4G/5G, Cellular (NBIoT, LTE)
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded Dipole
