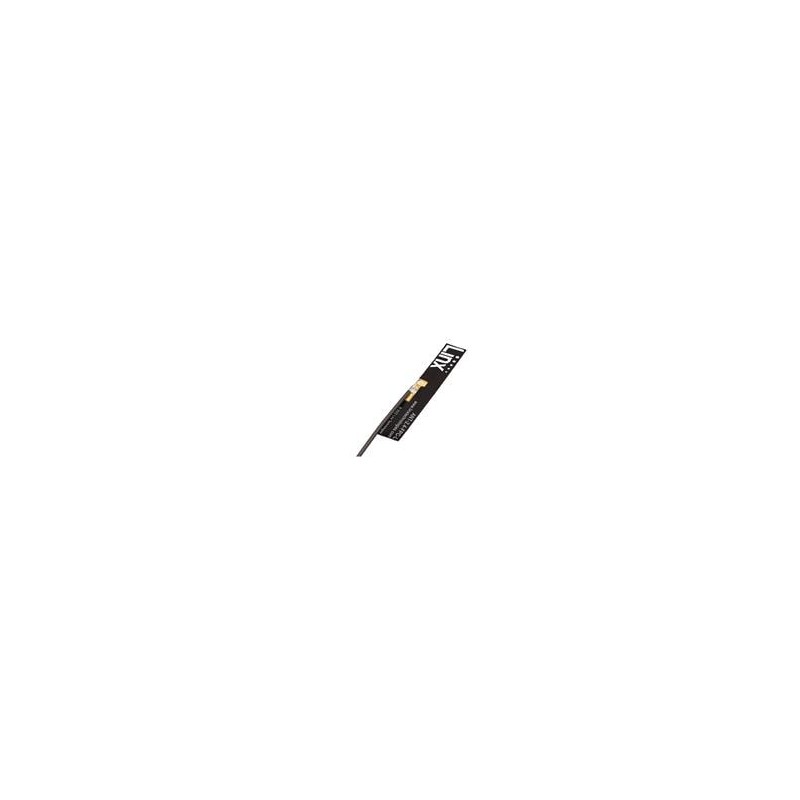

    1 pcs : ANT-2.4-FPC-LV100MX - Antennas 2.4 GHz FPC antenna, 45x7mm, inline cable egress, 100mm cable, MMCX
    • 1 pcs : ANT-2.4-FPC-LV100MX - Antennas 2.4 GHz FPC antenna, 45x7mm, inline cable egress, 100mm cable, MMCX

    1 pcs : ANT-2.4-FPC-LV100MX - Antennas 2.4 GHz FPC antenna, 45x7mm, inline cable egress, 100mm cable, MMCX

    Allparts-UK/M/712-ANT-24FPCLV100MX
    £15.39
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    LFPC24 LH & LV 45mm x 7mm 2.4GHz FPC Antennas TE Connectivity / Linx Technologies LFPC24 LH and LV 45mm x 7mm 2.4GHz FPC Antennas are adhesive FPC antennas for 2.4GHz ISM applications, including BLUETOOTH®, ZigBee®, and single-band Wi-Fi®. TE Connectivity / Linx Technologies ANT-2.4-FPC-LH and ANT-2.4-FPC-LV Antennas provide a ground-plane independent dipole internal/embedded antenna solution. The flexibility and adhesive backing make these LFPC24 45mm x 7mm antennas easy to mount in RF transparent (plastic) enclosures, enabling environmental sealing and protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF1/U.FL-type plug (female socket), MHF4 plug (female socket), or MMCX plug (male pin) connector.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-24FPCLV100MX
    ANT-2.4-FPC-LV100MX
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    7.2 mm
    Height
    0.1 mm
    Cable length
    100 mm
    Length
    45.2 mm
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    LFPC24
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    FPC Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    1.13 mm Coax
    Maximum Frequency
    2.5 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    4.3 dBi
    Product Category
    Antennas
    Style
    I-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Indoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    100
    Subcategory
    Antennas
    Part # Aliases
    L9000045-01
    VSWR
    1.7
    Antenna Connector Type
    MMCX Plug
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    1 Band
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
    Electrical Type
    Dipole
