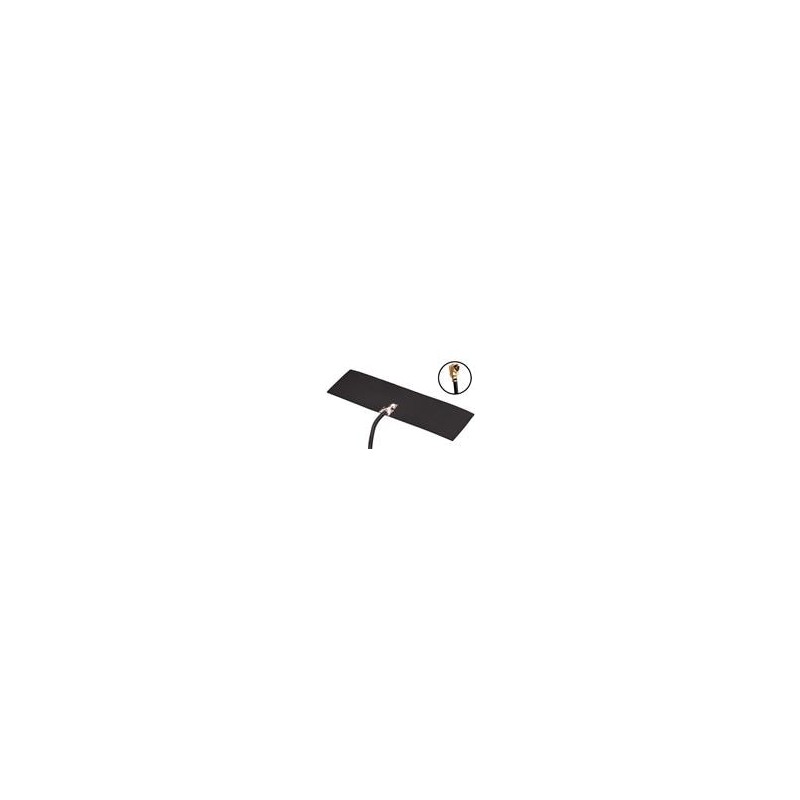

    1 pcs : ANT-W63-FPC2-UFL-100 - Antennas 6GHz, 5GHz, 2.4GHz WiFi flexible flat patch adhesive antenna, 100 mm long 1.13 mm coax,
    • 1 pcs : ANT-W63-FPC2-UFL-100 - Antennas 6GHz, 5GHz, 2.4GHz WiFi flexible flat patch adhesive antenna, 100 mm long 1.13 mm coax,

    1 pcs : ANT-W63-FPC2-UFL-100 - Antennas 6GHz, 5GHz, 2.4GHz WiFi flexible flat patch adhesive antenna, 100 mm long 1.13 mm coax,

    Allparts-UK/M/712-TW63FPC2UFL100
    £10.91
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    W63-FPC2 Flexible Embedded Wi-Fi® 6 Antenna TE Connectivity / Linx Technologies W63-FPC2 Flexible Embedded Wi-Fi® 6 Antenna is designed for Wi-Fi 6E applications in the 6GHz band (5.925GHz to 7.125GHz) plus 2.4GHz and 5GHz Wi-Fi/WLAN for Wi-Fi 5 and Wi-Fi 6 solutions. The antenna is a ground-plane-independent dipole embedded solution and is comparable to an external antenna in performance. The flexible antenna features an adhesive backing for easy mounting in unique and custom enclosures. TE Connectivity / Linx Technologies W63-FPC2 Flexible Embedded WiFi 6 Antenna features a 100mm (3.94') long, 1.13mm coaxial cable terminated in a U.FL-type plug (female socket) connector for connection.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-TW63FPC2UFL100
    ANT-W63-FPC2-UFL-100
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    12 mm
    Height
    0.2 mm
    Cable length
    100 mm
    Application
    Wireless Applications, U-NII, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring
    Length
    42 mm
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    W63FPC
    Maximum Operating Temperature
    + 80 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    100 mm RF1.13
    Maximum Frequency
    7.125 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    3.2 dBi, 7.7 dBi, 8.4 dBi
    Product Category
    Antennas
    Style
    I-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    100
    Subcategory
    Antennas
    Part # Aliases
    L9000203-01
    VSWR
    2.4, 1.4, 2.4
    Antenna Connector Type
    U.FL Plug
    Protocol - WiFi - 802.11
    802.11 b/g/n/ac/ax, WiFi 4, WiFi 5, WiFi 6, WiFi 6E
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, U-NII
    Number of Bands
    3 Band
    Centre Frequency
    2.443 GHz, 5.5 GHz, 6.525 GHz
    Protocol - Cellular, NBIoT, LTE
    2G/4G/5G, Cellular (NBIoT, LTE)
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded Dipole
