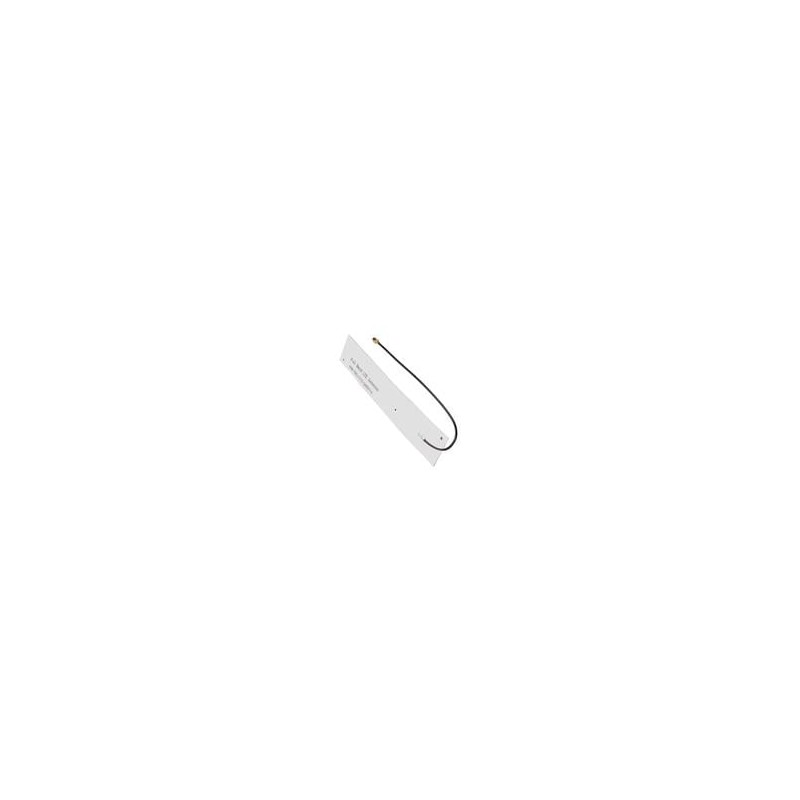

    1 pcs : ANT-LPL-FPC-100 - Antennas ANTENNA FPC 868/915MHZ 1.13 50
    • 1 pcs : ANT-LPL-FPC-100 - Antennas ANTENNA FPC 868/915MHZ 1.13 50

    1 pcs : ANT-LPL-FPC-100 - Antennas ANTENNA FPC 868/915MHZ 1.13 50

    Allparts-UK/M/712-ANT-LPL-FPC-100
    £10.53
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    FPC LTE/LPWA Flexible Adhesive Dipole Antennas TE Connectivity / Linx Technologies FPC LTE/LPWA Flexible Adhesive Dipole Antennas provide a broad set of capabilities based around a wideband cellular 2G/3G/4G backbone to support Cellular IoT (LTE-M/Cat-M1, NB-IoT), LPWA such as LoRaWAN® and Sigfox®, GNSS/Navigation, and unlicensed applications like WiFi/WLAN and BLUETOOTH®. These antennas provide a ground plane independent dipole embedded antenna solution comparable in performance to an external antenna. These TE Connectivity / Linx Technologies antennas' flexibility and adhesive backing allow for easy mounting in unique and custom enclosures while enabling environmental sealing and protection from tampering or accidental antenna damage.
    Product Details
    TE Connectivity / Linx Technologies
    Allparts-UK/M/712-ANT-LPL-FPC-100
    ANT-LPL-FPC-100
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Width
    20 mm
    Height
    0.2 mm
    Cable length
    100 mm
    Application
    Worldwide Cellular, Low Power Wide Area, ISM Applications, Global Navigation
    Length
    110 mm
    Wavelength
    1/2 Wave
    Polarisation
    Linear
    Series
    FPC
    For Use With
    LTE, GSM, UMTS, 2G/3G/4G, LPWA, LoRa, LoRaWAN, Sigfox, Sidewalk, Weightless-P
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    100 mm RF1.13
    Maximum Frequency
    3.8 GHz
    Minimum Frequency
    698 MHz
    Termination Style
    Connector
    Gain
    5.6 dBi, 6.5 dBi, 4.9 dBi, 5.2 dBi, 5.3 dBi, 2.9 dBi
    Product Category
    Antennas
    Style
    I-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Antennas
    Unit Weight
    1.500 g
    VSWR
    2.3, 2.4, 4.6, 1.4, 1.8, 3.5
    Antenna Connector Type
    IPEX MHF1
    Protocol - WiFi - 802.11
    802.11, LoRaWAN, SigFox, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    RFID, IoT, ISM
    Number of Bands
    6 Band
    Centre Frequency
    700 MHz, 800 MHz, 850 MHz, 900 MHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.3 GHz, 2.4 GHz, 2.5 GHz, 3.3 GHz, 3.4 GHz, 3.5 GHz, 3.6 GHz
    Protocol - Cellular, NBIoT, LTE
    Cellular (NBIoT, LTE), GSM, UMTS, CBRS
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded Dipole
