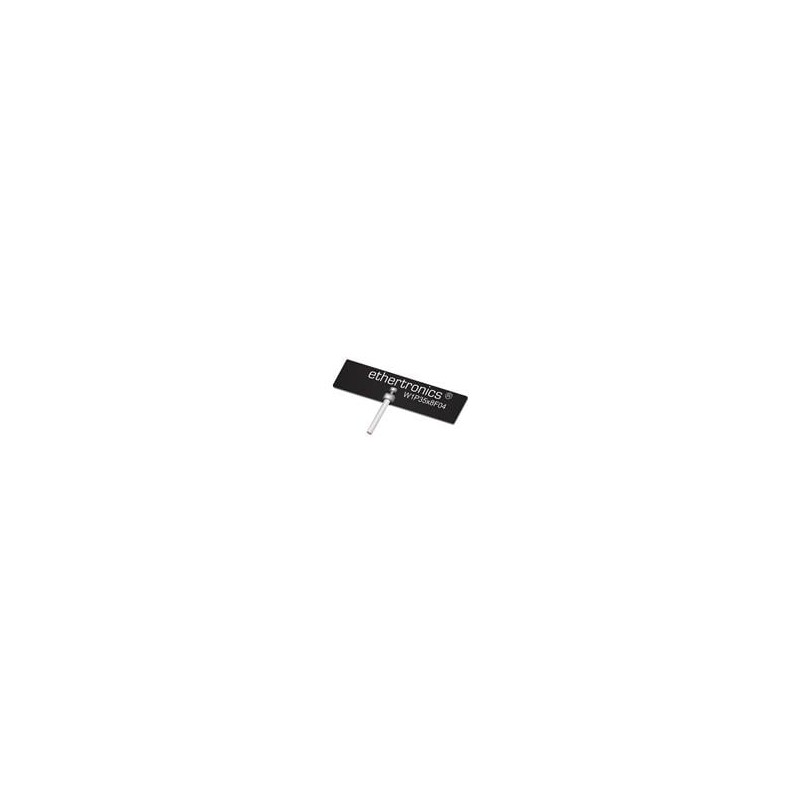

    1 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside
    • 1 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside

    1 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside

    electronicparts-UK/M/581-135X8F04U10D3B0T
    £12.13
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WLAN/BLUETOOTH/ZigBee Tunable Embedded Antennas KYOCERA AVX WLAN / BLUETOOTH® / ZigBee® Tunable Embedded PCB Antennas offer high functionality and performance for smaller and thinner designs. The 2.4GHz / 5GHz dual-band antennas utilize patented isolated magnetic dipole (IMD) technology to deliver a unique size and performance combination. This technology provides superior RF field containment, resulting in less interaction with surrounding components. These antennas have unique features, enabling limited-range RF tuning by leaving P1 - P6 and C1 - C2 connected via a solder bridge or disconnected with a cut to the trace. KYOCERA AVX Tunable Embedded PCB Antennas are ideal for smart homes, digital signs, automotive, Internet of Things (IoT), and other applications.
    Product Details
    KYOCERA AVX
    electronicparts-UK/M/581-135X8F04U10D3B0T
    W1P35X8F04-U100D3B0T
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Impedance
    50 Ohms
    Width
    8 mm
    Height
    0.4 mm
    Cable length
    150 mm
    Application
    Agriculture, Smart Home, Healthcare, Automotive, Digital Signage
    Length
    35 mm
    Bandwidth
    80 Hz
    Frequency
    -
    Series
    W1 Family
    Mounting Style
    Adhesive Mount
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Maximum Frequency
    2.48 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    2.8 dBi
    Frequency Range
    2.4 GHz to 2.48 GHz
    Product Category
    Antennas
    Style
    T-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    KYOCERA AVX
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    400
    Subcategory
    Antennas
    Antenna Connector Type
    U.FL
    Protocol - WiFi - 802.11
    WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    1 Band
    Centre Frequency
    2.44 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded
