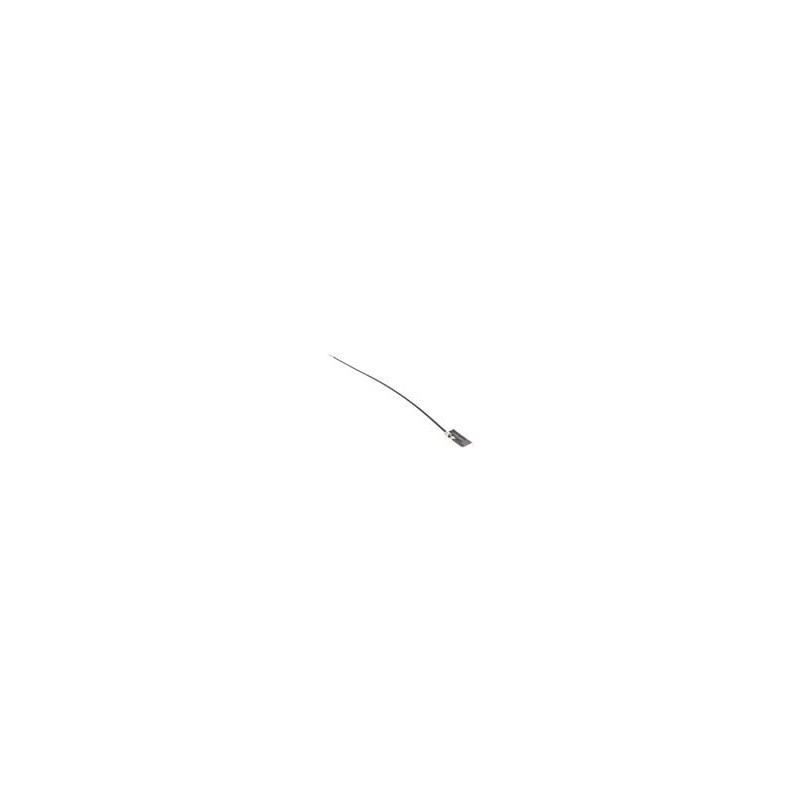

    1 pcs : 206994-1100 - Antennas 2.4/5GHz Flex MHF4 Antenna 15x6MM
    • 1 pcs : 206994-1100 - Antennas 2.4/5GHz Flex MHF4 Antenna 15x6MM

    1 pcs : 206994-1100 - Antennas 2.4/5GHz Flex MHF4 Antenna 15x6MM

    electronicparts-UK/M/538-206994-1100
    MOLEX
    £10.56
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    2.4GHz / 5GHz Flexible Antennas Molex 2.4GHz / 5GHz Flexible Antennas are designed for fast and easy integration into wireless devices at minimal implementation cost. The antennas feature a UFL-type connector and a 100mm or a 150mm micro-coaxial cable for optimum RF performance and easy connectivity. The highly compact, side-fed monopole antennas offer significant space savings while supporting high-performance needs. The 2.4GHz / 5GHz flexible antennas are ideal for consumer, automotive, and industrial applications.
    Product Details
    MOLEX
    electronicparts-UK/M/538-206994-1100
    206994-1100
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Impedance
    50 Ohms
    Width
    6.4 mm
    Height
    0.15 mm
    Cable length
    100 mm
    Length
    15.4 mm
    Series
    206994
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    100 mm Coax
    Maximum Frequency
    5.85 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    3.6 dBi
    Product Category
    Antennas
    Style
    I-Bar Flex
    RoHS
    Details
    Brand
    Molex
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1600
    Subcategory
    Antennas
    Unit Weight
    471 mg
    Part # Aliases
    2069941100 02069941100
    Antenna Connector Type
    IPEX MHF
    Protocol - WiFi - 802.11
    802.11, LoRaWAN, SigFox, WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, RFID, U-NII
    Number of Bands
    2 Band
    Centre Frequency
    2.45 GHz, 5.5 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
