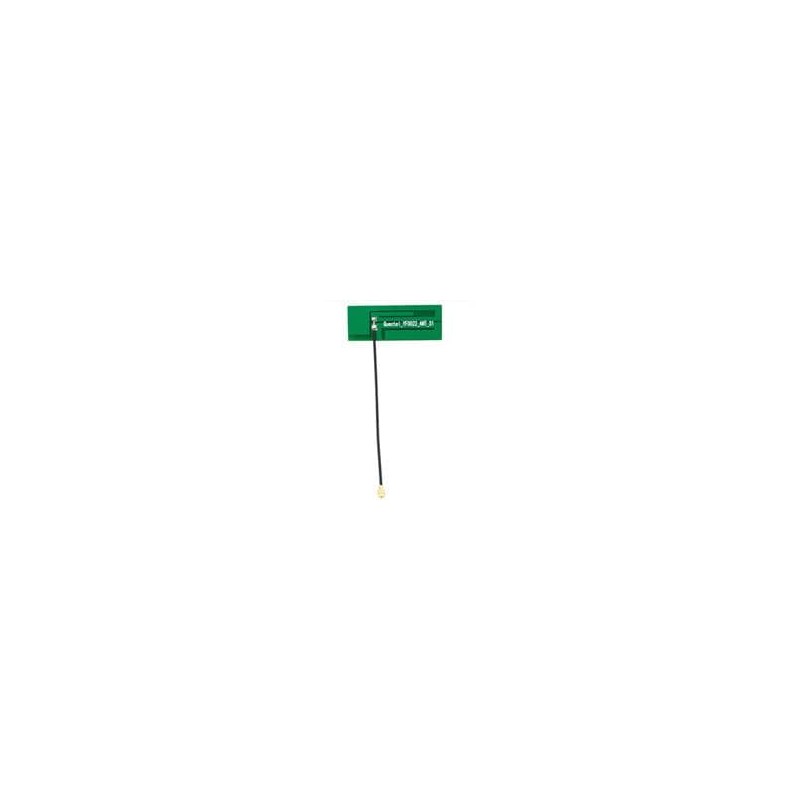

    1 pcs : YF0022AA - Antennas Embedded, 700-2690, LTE (4G), PCB with cable, 75 +/-3, RF1, Adhesive, 40 15 1.6 (not recommended for
    • 1 pcs : YF0022AA - Antennas Embedded, 700-2690, LTE (4G), PCB with cable, 75 +/-3, RF1, Adhesive, 40 15 1.6 (not recommended for

    1 pcs : YF0022AA - Antennas Embedded, 700-2690, LTE (4G), PCB with cable, 75 +/-3, RF1, Adhesive, 40 15 1.6 (not recommended for

    Allparts-UK/M/277-YF0022AA
    QUECTEL
    £9.28
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Y Series 50Ω High Efficiency Antennas Quectel Y Series 50Ω High-Efficiency Antennas are designed for superior performance and can be widely used for wireless applications. The Y Series 50Ω High-Efficiency Antennas are available in a variety of types including 6G FPC, Cellular, GNSS, GPS, and LTE. These antennas feature linear or RHCP polarization, a 50Ω impedance, cover frequencies within a 600MHz to 6000MHz range, and operate within a temperature range as low as -40°C and as high as +85°C, depending on the model.
    Product Details
    QUECTEL
    Allparts-UK/M/277-YF0022AA
    YF0022AA
    10 Items

    Data sheet

    Manufacturer
    QUECTEL
    Impedance
    50 Ohms
    Width
    15 mm
    Height
    1.6 mm
    Application
    Cellular Radio, Wireless Applications
    Length
    40 mm
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 20 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Cable Type
    75 mm RF1.13
    Maximum Frequency
    2.69 GHz
    Minimum Frequency
    700 MHz
    Termination Style
    Connector
    Gain
    5.34 dBi
    Product Category
    Antennas
    Style
    T-Bar
    Brand
    Quectel
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    200
    Subcategory
    Antennas
    VSWR
    3
    Antenna Connector Type
    RF Gen 1
    Protocol - WiFi - 802.11
    WiMAX
    Protocol - Sub GHz
    UHF
    Number of Bands
    3 Band
    Centre Frequency
    750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
    Mechanical Style
    PCB Trace
