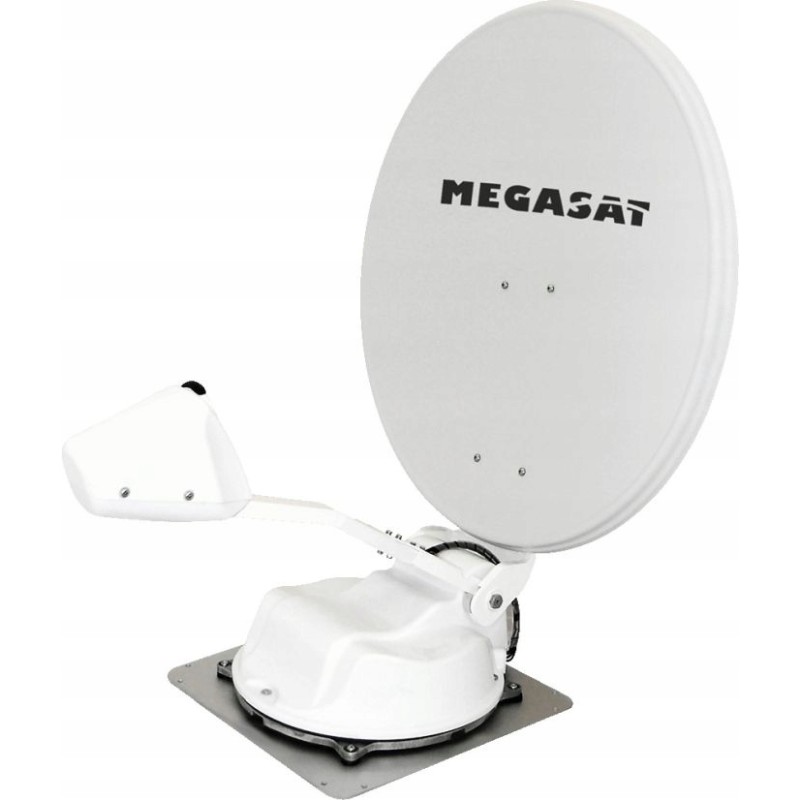

Anlage Caravanman 85 Premium Megasat satellite dish

Caravanman 85 Premium satellite dish by Megasat

It is the perfect companion for everyone who wants to enjoy great TV and radio reception everywhere

in Europe

85 cm plate width provides ideal conditions for signal reception even with a weak satellite signal

Another advantage is the low height of only 19 cm when folded This allows installation on high vehicles and is controlled using the included control module, which can be found in the short

desired satellite by pressing just one button

The control unit is programmed for a total of 10 satellites Once turned on, just press the button to automatically answer satellite TV

Operating temperature range from -20 to + 70 *C

INCLUDED:

*Megasat caravanman 85 Premium antenna

*control unit

*1 m antenna connection cable

*10 m antenna connection cable

*7 m cable

*roof culvert

*weather protection for cable connector

*user manual

PROGRAMMED SATELLITES:

*Astra 1 (19.2°E)

*Astra 2 (28.2°E)

*Astra 3 (23.5°E)

*Astra 4 (4.8°E)

*Hotbird (13°E)

*Hispasat (30°W)

*Eutelsat 5 West A (5°W)

*Thor (0.8°W)

*Turksat (42°E)

*Hellas Sat 2 (39°E)

SPECIFICATIONS - TECHNICAL DATA:

antenna dimensions (closed):

length: 1020 mm

width: 850 mm

height: 190 mm

dimensions of the control unit:

width: 295 mm

height: 46 mm

depth: 130 mm

power supply: 12 / 240 V

LNB type: Single LNB

frequency range: 10.7 - 12.75 GHz

LNB gain: 39 dBi

turntable: 2-axis

tilt angle: 0° to 90°

search range: 360 °

setting speed: 6°/s

rotation speed: 13°/s

search time: 1-2 min

weight: 16 kg

color: white
