Automatic satellite dish m7 tv sat 80 cm giocamper

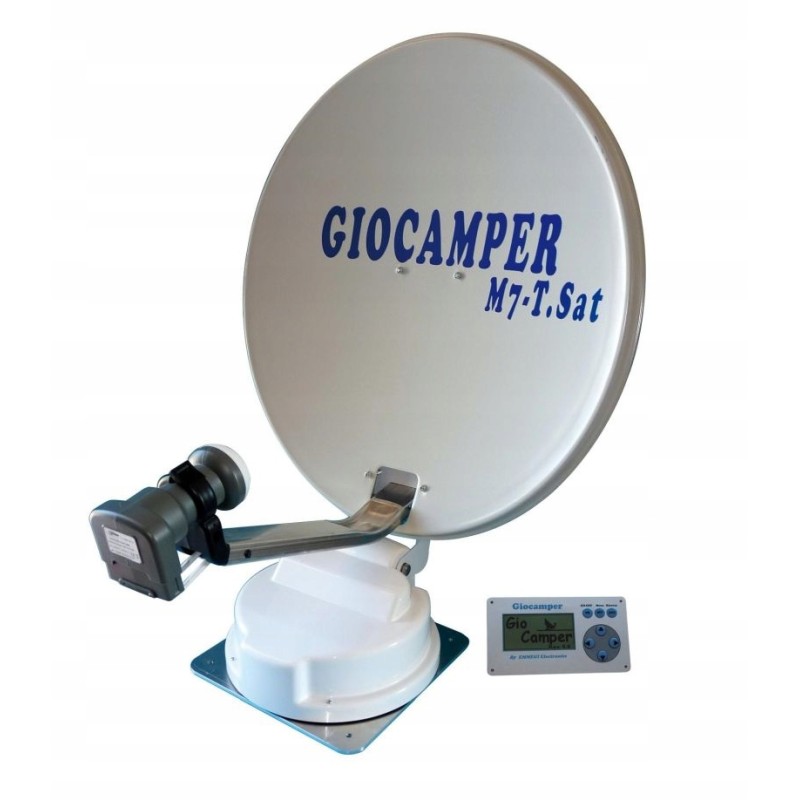

M7 T-SAT satellite dish by Giocamper

The antenna is fully automatic with independent

a system that searches for any decoder The antenna has a programmed list of satellites,

which can be accessed directly

from the control console

DEFAULT SATELLITES ARE:

*HOTBIRD 13°E

*ASTRA 19°E

*ASTRA 23°E

*ASTRA 28°E

*TURKSAT 42°E

*HISPASAT 30° W

*EUTELSAT 5°W

*THOR 1st W.

*ASTRA 5°E

*EUTELSAT 9°E

To start your search, just press

one button. Once you do this, the antenna will be autonomous

was searching for a satellite, and after blocking it will make

more accurate centering to achieve

maximum signal (a very important procedure

enabling proper operation of HD, FULL HD, etc.)

The control console is very simple and intuitive It also has a 3' graphic LCD display where all related data are presented with the operation of the satellite dish.

ADVANTAGES:

*integrated GPS for faster and more

reliable search

*integrated TUNER capable of autonomous operation

connecting transponders in DVB-SiDVB-S2.

*mechanics completely redesigned in comparison

to previous models

*lifting mechanism on bearings for better

traffic flow

*aluminum arm

*bronze moving parts

*central pin made of impregnated nylon

*white ABS cover, reinforced for better resistance to the sun and weather conditions *simple and intuitive control console

*customizable multilingual menu

*satellite frequencies update in seconds

directly from the console, without the help of a computer, USB, etc.

*integrated emergency lock

*various options available

*possibility to support up to 3 independent SAT outputs

*direct connection between LNB and decoder,

to avoid unnecessary signal dispersion

*very simple assembly

SPECIFICATIONS - TECHNICAL DATA:

power supply: 12V

rotation absorption MAX: 0.8 Ah

increased MAX absorption: 0.9 Ah

plate: elliptical 80 cm

weight: approx. 7.5 kg

height after folding: 17 cm

dimensions after folding: 73 x 88 cm

The antenna is supplied with DUAL LNB

with the following features:

*input frequency: 10.7 - 11.7 GHz

*output frequency: 950 - 1950 MHz

*Freq.LO: 9.75 GHz.

*outputs: 2 (ONLY ONE DESIGNED FOR DECODING R)

*low noise technology

*4G interference resistance

*4K ULTRA HD

INCLUDED:

*engine body.

*5 m of control cable (already wired inside the motor body). *5 m SAT cable (already connected in the motor body)

*control console

*plate 80 cm

*plate support 80 cm

*LNB DUAL (not included in the GC.OPT005 set)

*mounting plate

*box for mounting the antenna (no need to cut a hole in the furniture)
