WiFi router 4g kit with external antenna 5g kathrein car 160

WiFi ROUTER KIT WITH EXTERNAL ANTENNA FROM KATHREINKATHREIN Digital Systems is the market leader in digital satellite reception technology and a strong partner for retailers, craftsmen and end customers. Thanks to innovative technologies and comprehensive support - from planning to project launch - KATHREIN Digital Systems stands out like no other company in reliably connecting people and providing entertainment. Under the Kathrein quality brand, which has been existing for over 100 years, the traditional company based in Rosenheim currently provides products in the field of satellite reception, broadband cable networks, camping and caravans, DAB+ radio, network technology and passive DAS

PRODUCT DESCRIPTION:

Manufacturer: Kathrein

Model: CAR 160 WIFI Duo 5G MIMO

Antenna with WLAN/LTE router ( 4G)

Internet via mobile communication (LTE) or WLAN

Antenna color: white

Router color: black

Product code: REI49148

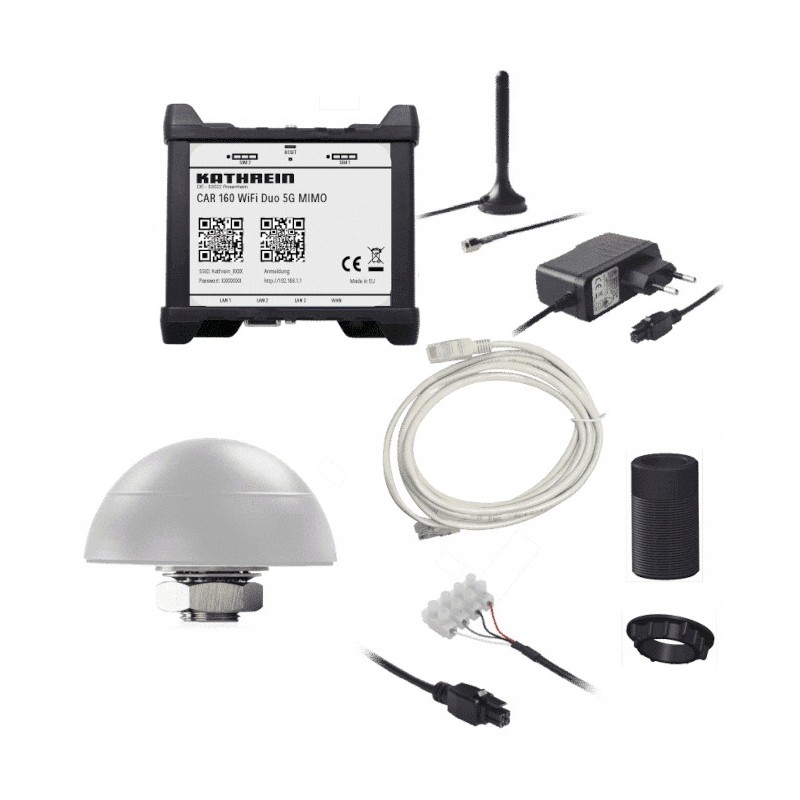

INCLUDED:

Omnidirectional roof antenna

WLAN/LTE router (4G)

12V connection cable

Roof channel with fixing screw and knurled nut

230V power supply unit

Mounting kit for router

1.5m Ethernet cable

Internal WiFi antenna

Roof channel with fixing screw and nut knurled

ANTENNA:

MIMO omni-directional antenna

Wi-Fi frequency range: 2400 – 2483.5 MHz

4900-5825 MHz

LTE connections: 2x SMA connector

LTE frequency range: 698 – 960 MHz

1710 – 2690MHz

3400-3800 MHz

GNSS frequency range: 1575.42 – 1610 MHz

Cable length: 1.5 m

Height: 53 mm

Diameter: 110 mm

Weight: 0.550 kg

Color: white

ROUTER:

Type: 4G/LTE (cat. 4), 3G, 2G and Wi-Fi

Antenna connections: 2x SMA for LTE

2 x RP-SMA for WLAN

1 x SMA for GPS

Internet connection: 3x LAN

1x WAN network

Wi-Fi security: WPA2-PSK

Power consumption: 170 mA

Power consumption: 2 W

SIM card: freely selectable

Height: 50 mm

Width: 109 mm

Depth: 103 mm

Weight: 0.295 kg

Casing material: plastic

CHARACTERISTIC FEATURES:

The CAR 160 WiFi Duo 5G MIMO dual-SIM WiFi kit allows you to connect mobile devices (mobile phone, tablet, notebook) to the Internet via an existing network WiFi or mobile data of the inserted SIM card

External MIMO antenna for excellent LTE/WLAN reception

Use of existing WLAN networks, e.g. e.g. camping/restaurants/...

Two SIM card slots enabling the use of different networks, e.g. B. D1 and Vodafone or local suppliers abroad

12V or 230V power supply possible

5 x antenna, 4 x Ethernet, 1 x USB port and many other ports

Low power consumption

Easy operation

Future-proof solution thanks to the possibility of updating via the Internet

Internet also available while driving and abroad
