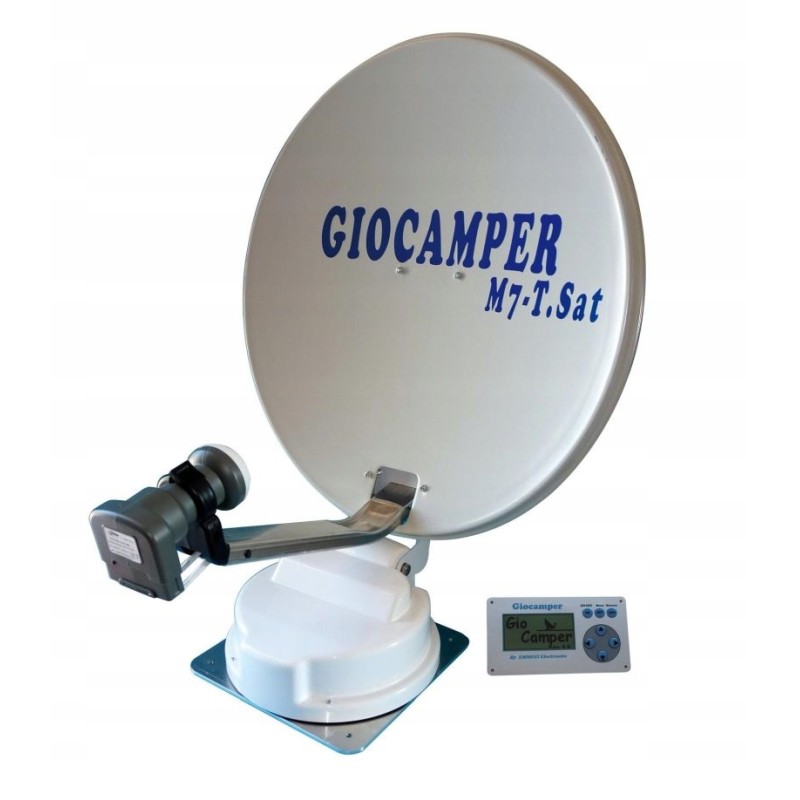

Automatic satellite dish 80 cm giocamper

Product name: Automatic satellite dish M7 SAT TV 80 cm - Giocamper from GoMarket

Symbol: GIO-80

Color: White

Material: Aluminum Brown Nylon ABS

Size: 73 x 88 cm

Manufacturer: Giocamper

Unit of measurement: piece

Description: M7 T-SAT satellite dish by Giocamper

The antenna is fully automatic with an independent

system that searches for any decoder

The antenna has a programmed list of satellites

which can be accessed directly

from the control console

DEFAULT SATELLITES ARE:

* HOTBIRD 13 ° E

*ASTRA 19 ° E

*ASTRA 23 ° E

*ASTRA 28 ° E

*TURKSAT 42 ° E

*HISPASAT 30 ° W

*EUTELSAT 5 ° W

*THOR 1st W.

*ASTRA 5 ° E

*EUTELSAT 9 ° E

Just press one button to start your search. Once you do this, the antenna will autonomously

search for the satellite, and after locking it will center more precisely to obtain

the maximum signal (a very important procedure

enabling proper operation of HD, FULL HD, etc.)

The control console is very simple and intuitive,

it also has a 3-inch graphic LCD display that presents all data related to the operation of the satellite antenna. ADVANTAGES: * integrated GPS for faster and more reliable search * integrated TUNER capable of autonomously connecting transponders in DVB- SiDVB-S2.

*mechanics completely redesigned compared to previous models

*lifting mechanism on bearings for better

smooth movement

*aluminum arm

*moving parts made of bronze

*central pin made of impregnated nylon

*cover made of white ABS, reinforced for better resistance

to sun and weather conditions

*simple and intuitive control console

*configurable multilingual menu

*satellite frequency updates in a few seconds

directly from the console, without the help of a computer, USB, etc.

*integrated emergency shutdown

*available various options

*possibility to support up to 3 independent SAT outputs

*direct connection between LNB and decoder

to avoid unnecessary signal dispersion

*very simple installation

SPECIFICATIONS - TECHNICAL DATA:

power supply: 12V

rotation absorption MAX: 0.8 Ah

raised MAX absorption: 0.9 Ah

plate: elliptical 80 cm

weight: approx. 7.5 kg

folded height: 17 cm

folded dimensions: 73 x 88 cm

The antenna is supplied with DUAL LNB

with following features:

*input frequency: 10.7 - 11.7 GHz

*output frequency: 950 - 1950 MHz

*Freq.LO: 9.75 GHz.

*outputs: 2 (ONLY ONE DESIGNED FOR R DECODING)

*low noise technology

*4G interference immunity

*4K ULTRA HD

INCLUDED:

*engine body.

*5 m control cable (already wired inside

engine body)

*5 m SAT cable (already connected in the engine body)

*control console

*plate 80 cm

*plate support 80 cm

*LNB DUAL (not included in the GC.OPT005 set)

*mounting plate

*box for mounting the antenna (no need to cut a hole in the furniture )
