Upper wishbone ends kinroad atv
  • Upper wishbone ends kinroad atv
  • Upper wishbone ends kinroad atv

Upper wishbone ends kinroad atv

1505115503416
£34.95
Quantity
5 Items

Description

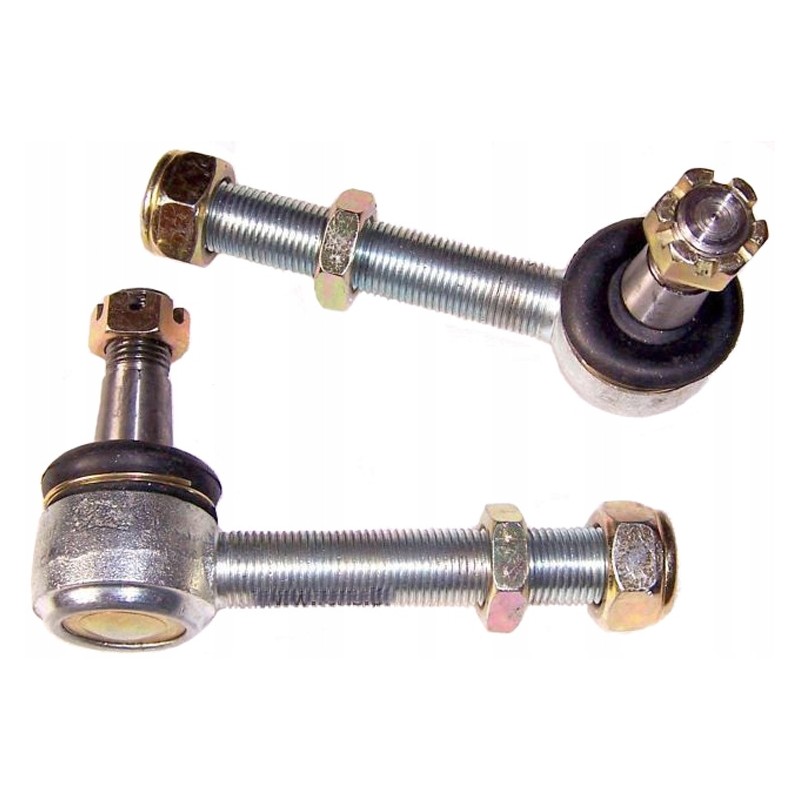

Catalog No. LS.00142 Welcome to the Leris-pl auction, we have to offer: UPPER FRONT CONTROL ARM END

KINROAD ATV 200 ETC.

.

The price is for one piece.

Easy to assemble!

Very good quality of workmanship!

Both threads are right-handed.

Wide range of applications - QUADS, ATVs, etc. Please check the dimensions carefully :)

DIMENSIONS:

Total length - 124 mm

Long thread length - 86 mm

Long thread diameter - 16 mm

The nut on the long thread has a plastic coating, additionally protecting against unscrewing.

The nut on the long thread has a lock nut visible on the in the photo.

Nut and lock nut on long thread, screwed on with a '24' wrench

Height - 71 mm

Length of short thread - 19 mm

Diameter of short thread - 14 mm

The thread has space for a cotter pin.

Nut on short thread, screwed on with a '19' wrench

Cone from 14.6 mm to 16.6 mm

Cone length - 18 mm

Product Details
1505115503416
AA00142p
5 Items
New

Data sheet

Part Number
AA00142p
Producer
other (anm)
