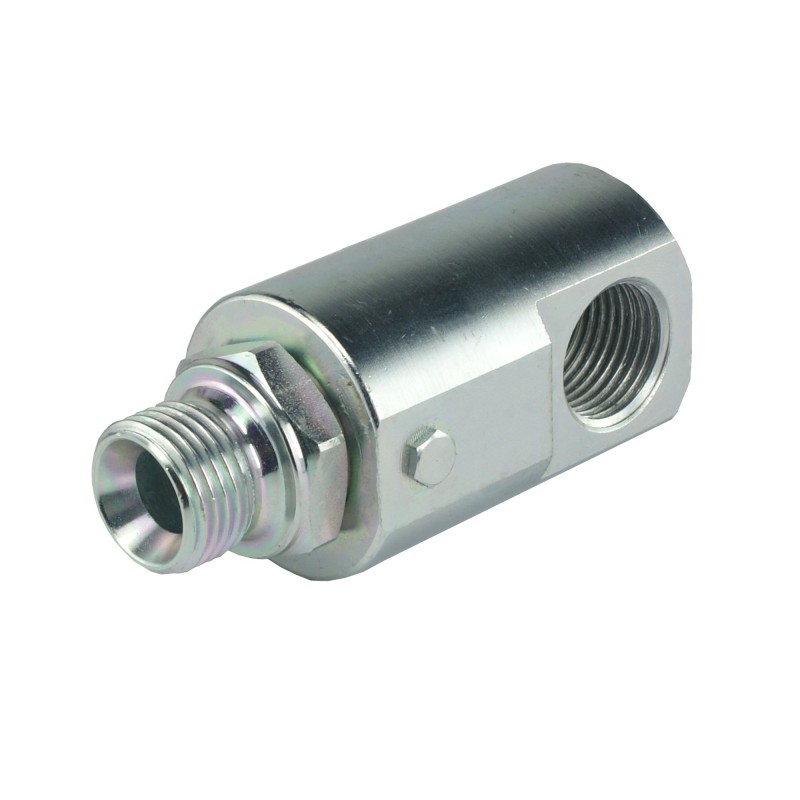

Angle swivel hydraulic connector ggl 1 2 hydrolider

SWIVEL ANGLE HYDRAULIC CONNECTOR BSP THREAD 1/2' Production:

Original product of the Oleodinamica Marchesini brand, symbol: 1.60.06.109

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Swivel connectors are installed directly to the hydraulic lines to protect them against damage caused by twisting or bending.

Two hydraulic elements mounted on both ends of the swivel joint can independently, twist and rotate freely while maintaining full tightness of the oil flow.

Helpful data:

BSP thread diameter 1/ 2' measured with a caliper:

Outer diameter [mm]: 20.5 - 20.9

Inner diameter [mm]: 18.6 - 19.0

Technical data:

Clamping cone angle: 60° (typical for the European standard)

Maximum flow: 60L/min

Thread on one side: external inch BSP 1/2'

Thread on the other side: internal inch BSP 1/2'

Maximum working pressure: 300bar

Maximum working pressure when turning: 150bar

Liquid type : hydraulic oil

Bearing type: ball

Material:

welded steel, galvanized, corrosion-resistant
