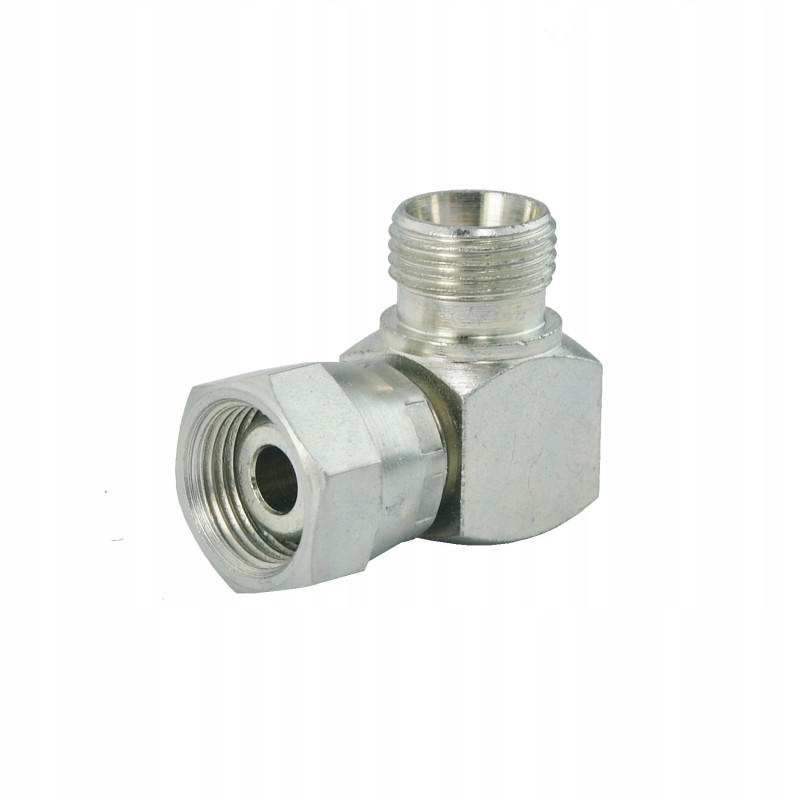

ANGLE HYDRAULIC CONNECTOR AB 3/8''/16'' Production:

Hydrolider, symbol: 1.60.04.106

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized version of the connector light with conical self-seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

Thread diameter 3/8'' measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14.9 - 15.4

Technical data:

Angle clamping cone: 24° (typical for the Polish standard)

Nominal bore diameter: 8 mm

Thread on one side: internal metric 3/8''

Thread on the other side: external metric 16X1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
