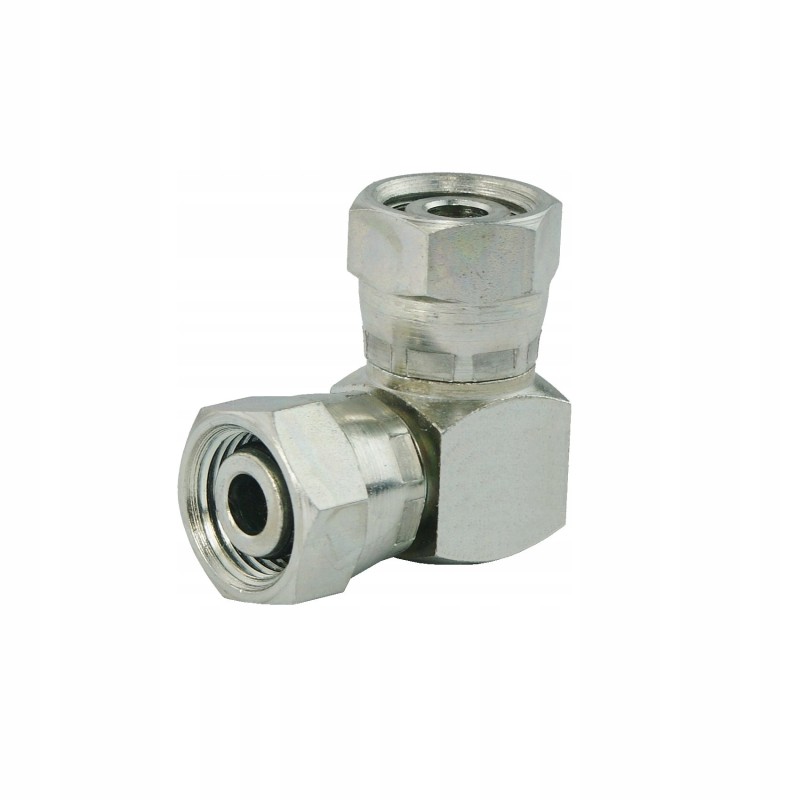

Angle connector AA M30x2 M30x2 hydrolider

HYDRAULIC ANGLE CONNECTOR AA 30/30 Production:

Original product of the Hydrolider brand, symbol: 1.60.05.040

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with a conical self -clamp seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

M30x2 thread diameter measured with a caliper:

Outer diameter [mm]: 29.6 - 29.9

Inner diameter [mm]: 27.4 - 27, 8

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal bore diameter: 16mm

Thread on one side: internal metric 30x2

Thread on the other side: internal metric 30x2

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
