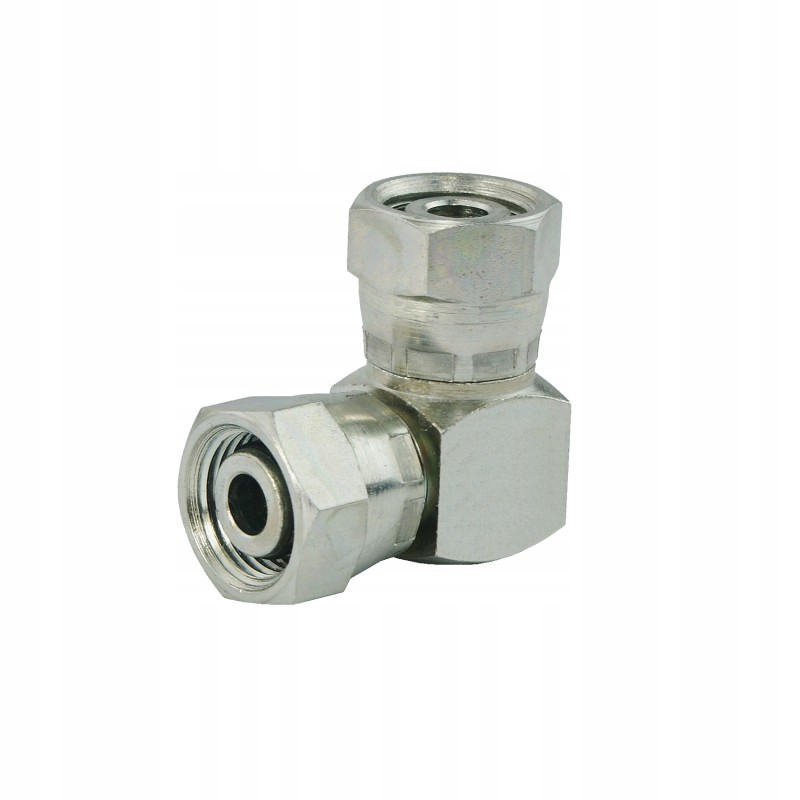

Hydraulic connector, reduction AA 22, 18 angles

HYDRAULIC ANGLE CONNECTOR AA 22/18 Production:

Hydrolider, symbol: 1.60.05.020

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self-clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connectors that can be purchased at our other auctions.

Helpful data:

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Nominal passage diameter: 10 mm

Thread on one side: internal metric 22x1.5

Thread on the other side: internal metric 18x1.5

Material: weldable steel, galvanized, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable steel, galvanized, corrosion-resistant
