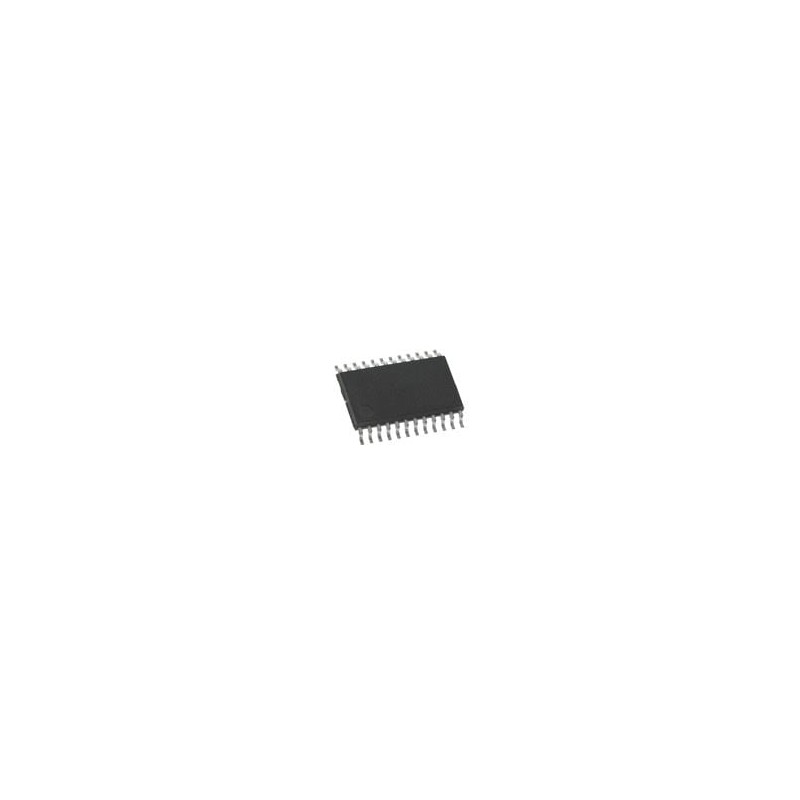

1 pcs : MAX1032BEUG+ - Analog to Digital Converters - ADC 8-/4-Channel, +/-12V Multirange Inputs, Serial 14-Bit ADCs
    • 1 pcs : MAX1032BEUG+ - Analog to Digital Converters - ADC 8-/4-Channel, +/-12V Multirange Inputs, Serial 14-Bit ADCs

    1 pcs : MAX1032BEUG+ - Analog to Digital Converters - ADC 8-/4-Channel, +/-12V Multirange Inputs, Serial 14-Bit ADCs

    electronicparts-UK/M/700-MAX1032BEUG+
    £37.38
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    MAX1032 / MAX1033 14-Bit ADCs Analog Devices MAX1032 / MAX1033 14-bit Analog-to-Digital Converters (ADCs) operate from a single +5V supply and achieve throughput rates up to 115ksps. A separate digital supply allows digital interfacing with 2.7V to 5.25V systems using an SPI-/QSPI™-/MICROWIRE™-compatible serial interface. Partial power-down mode reduces the supply current to 1.3mA (typ). Full power-down mode reduces the power-supply current to 1µA (typ). The MAX1032 provides eight (single-ended) or four (true differential) analog input channels.
    Product Details
    electronicparts-UK/M/700-MAX1032BEUG+
    MAX1032BEUG+
    10 Items

    Data sheet

    Manufacturer
    Analog Devices Inc.
    Series
    MAX1032B
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    ADCs - Analog to Digital Converters
    Interface Type
    SPI
    Package/Case
    TSSOP-24
    Product Category
    Analog to Digital Converters - ADC
    Packaging
    Tube
    RoHS
    Details
    Supply Voltage - Min
    4.75 V
    Supply Voltage - Max
    5.25 V
    Brand
    Analog Devices / Maxim Integrated
    Factory Pack Quantity Factory Pack Quantity
    62
    Subcategory
    Data Converter ICs
    Unit Weight
    212 mg
