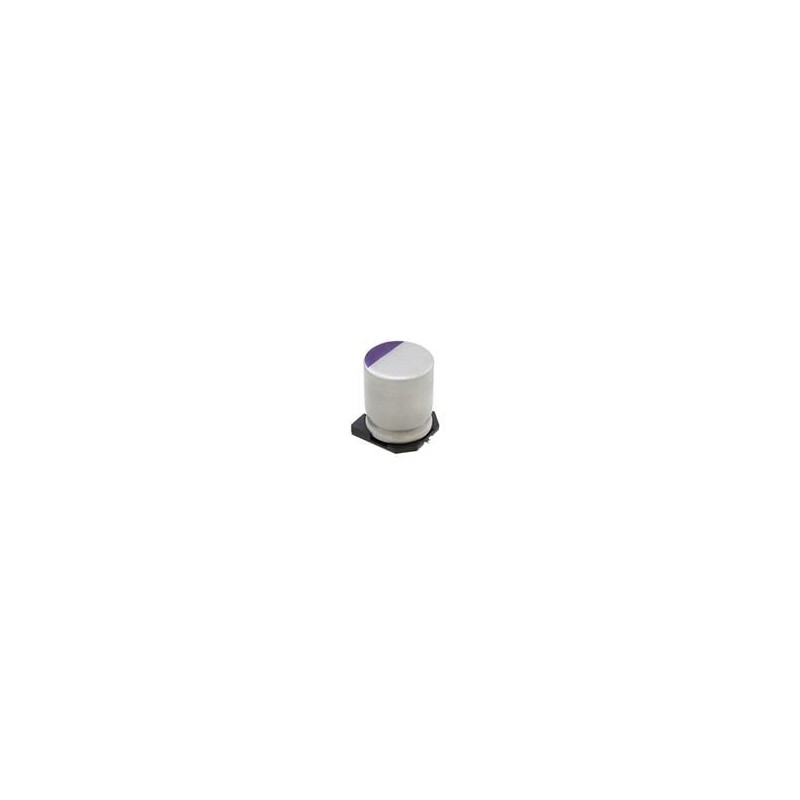

10 pcs : 16SVPF1000M - Aluminium Organic Polymer Capacitors 16volts 1000uF ESR 12mohm
    • 10 pcs : 16SVPF1000M - Aluminium Organic Polymer Capacitors 16volts 1000uF ESR 12mohm

    10 pcs : 16SVPF1000M - Aluminium Organic Polymer Capacitors 16volts 1000uF ESR 12mohm

    10(AllpartsUK)66716SVPF1000M
    PANASONIC
    10 pcs : 16SVPF1000M - Aluminium Organic Polymer Capacitors 16volts 1000uF ESR 12mohm
    £53.15
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    OS-CON™ Aluminum-Polymer Solid Capacitors Panasonic OS-CON™ Aluminum-Polymer Solid Capacitors utilize aluminum and a high-conductivity polymer material to offer low ESR, excellent noise reduction, and ripple current capabilities. The OS-CON Aluminum-Polymer Solid Capacitor product line consists of several series (SVP, SVPC, SVPF, SVPE, SEP, SEPC, and SEPF Series) that include products characterized by a long lifespan and minimal changes in ESR throughout the entire rated temperature range. The OS-CON series offers a very low ESR (as low as 5mΩ), capacitance range from 3.3µF to 2700µF, ripple up to 7.2Arms, and voltage range from 2VDC to 100VDC.
    Product Details
    PANASONIC
    10(AllpartsUK)66716SVPF1000M
    16SVPF1000M
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    1000 uF
    Tolerance
    0.2
    Leakage current
    3.2 mA
    Diameter
    10 mm
    Width
    -
    Height
    -
    Length
    12.6 mm
    Series
    SVPF
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 55 C
    Life
    5000 Hour
    Product Type
    Electrolytic Capacitors
    Termination Style
    SMD/SMT
    Ripple Current
    5.4 A
    Product Category
    Aluminium Organic Polymer Capacitors
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Panasonic
    Factory Pack Quantity Factory Pack Quantity
    400
    Subcategory
    Capacitors
    Unit Weight
    1.400 g
    Voltage Rating DC
    16 VDC
    Dissipation Factor DF
    12
    ESR
    12 mOhms
