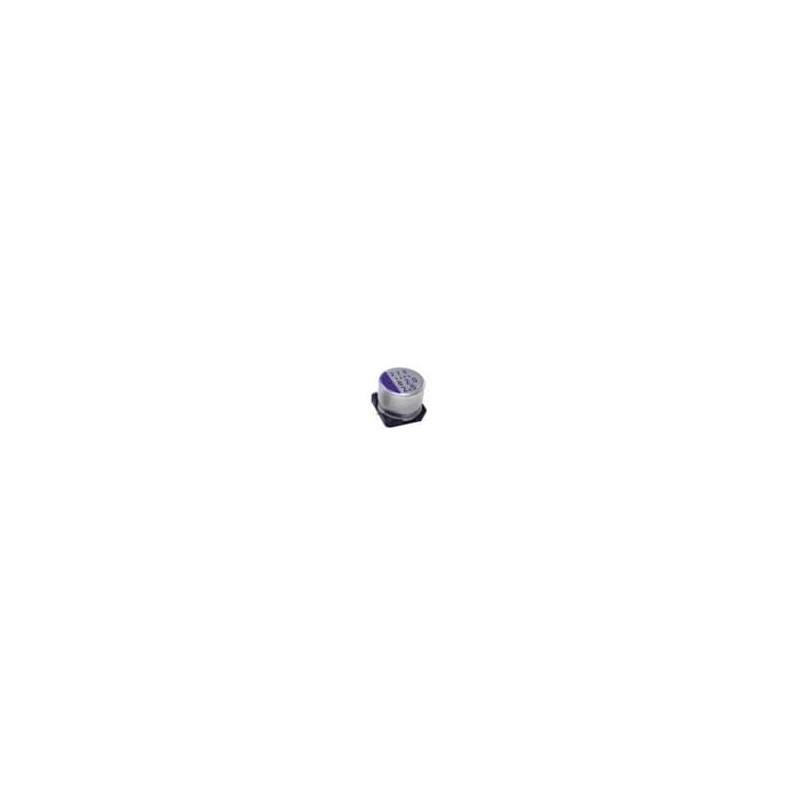

10 pcs : 6SVPA47MAA - Aluminium Organic Polymer Capacitors Type 6v 47uf 5x5.9mm
    • 10 pcs : 6SVPA47MAA - Aluminium Organic Polymer Capacitors Type 6v 47uf 5x5.9mm

    10 pcs : 6SVPA47MAA - Aluminium Organic Polymer Capacitors Type 6v 47uf 5x5.9mm

    10(electronicparts)6676SVPA47MAA
    PANASONIC
    10 pcs : 6SVPA47MAA - Aluminium Organic Polymer Capacitors Type 6v 47uf 5x5.9mm
    £30.31
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    OS-CON™ Aluminum-Polymer Solid Capacitors Panasonic OS-CON™ Aluminum-Polymer Solid Capacitors utilize aluminum and a high-conductivity polymer material to offer low ESR, excellent noise reduction, and ripple current capabilities. The OS-CON Aluminum-Polymer Solid Capacitor product line consists of several series (SVP, SVPC, SVPF, SVPE, SEP, SEPC, and SEPF Series) that include products characterized by a long lifespan and minimal changes in ESR throughout the entire rated temperature range. The OS-CON series offers a very low ESR (as low as 5mΩ), capacitance range from 3.3µF to 2700µF, ripple up to 7.2Arms, and voltage range from 2VDC to 100VDC.
    Product Details
    PANASONIC
    10(electronicparts)6676SVPA47MAA
    6SVPA47MAA
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    47 uF
    Tolerance
    0.2
    Diameter
    5 mm
    Width
    -
    Height
    -
    Length
    5.9 mm
    Series
    SVPA
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 55 C
    Life
    2000 Hour
    Product Type
    Electrolytic Capacitors
    Termination Style
    SMD/SMT
    Ripple Current
    1.97 A
    Product Category
    Aluminium Organic Polymer Capacitors
    RoHS
    Details
    Brand
    Panasonic
    Product
    Aluminum Polymer Capacitors
    Factory Pack Quantity Factory Pack Quantity
    1500
    Subcategory
    Capacitors
    Unit Weight
    180 mg
    Voltage Rating DC
    6 VDC
    ESR
    30 mOhms
