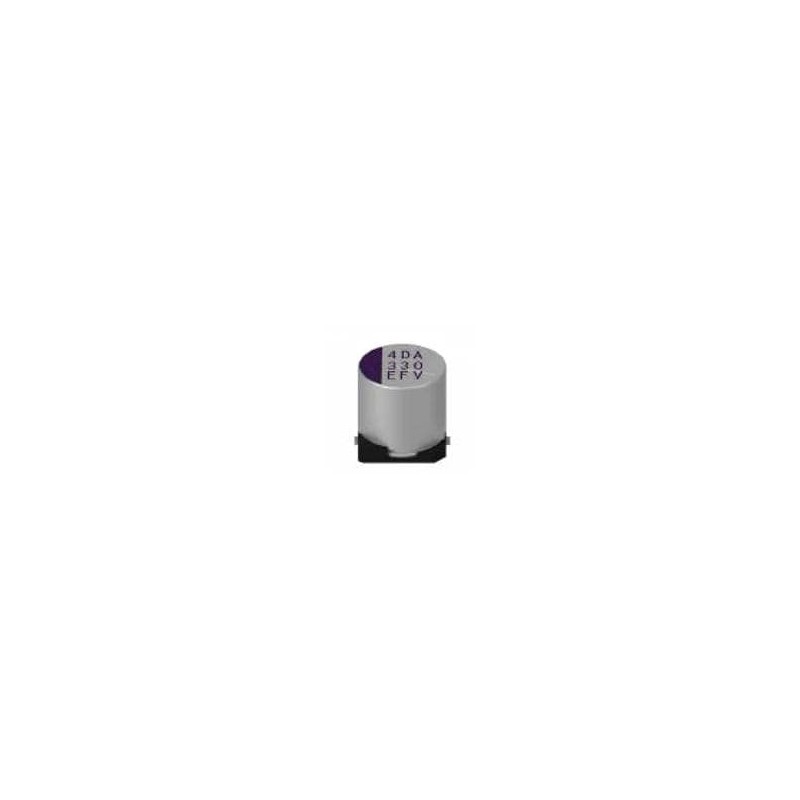

10 pcs : 63PFV10M6.3X6.1 - Aluminium Organic Polymer Capacitors 63VDC 10uF 20% AEC-Q200
    • 10 pcs : 63PFV10M6.3X6.1 - Aluminium Organic Polymer Capacitors 63VDC 10uF 20% AEC-Q200

    10 pcs : 63PFV10M6.3X6.1 - Aluminium Organic Polymer Capacitors 63VDC 10uF 20% AEC-Q200

    10(Allparts)23263PFV10M63X61
    Rubycon
    10 pcs : 63PFV10M6.3X6.1 - Aluminium Organic Polymer Capacitors 63VDC 10uF 20% AEC-Q200
    £38.82
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    PFV SMD Aluminum Electrolytic Capacitors Rubycon PFV SMD Aluminum Electrolytic Capacitors are high-temperature, general-purpose AECs that offer a long life of 4000 hours at +125°C. These hybrid-type capacitors are AEC-Q200 qualified and RoHS compliant. The package dimensions range from 6.3mm x 6.1mm to 10mm x 10.5mm. The PFV series has a rated voltage range of 25VDC to 80VDC and a capacitance range of 10µF to 330µF with ±20% (+20°C, 120Hz). Rubycon PFV SMD capacitors operate in a -55°C to +125°C category temperature range.
    Product Details
    Rubycon
    10(Allparts)23263PFV10M63X61
    63PFV10M6.3X6.1
    10 Items

    Data sheet

    Manufacturer
    Rubycon
    Capacitance
    10 uF
    Tolerance
    0.2
    Leakage current
    6.3 uA
    Diameter
    6.3 mm
    Length
    6.1 mm
    Series
    PFV
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Life
    4000 Hour
    Product Type
    Electrolytic Capacitors
    Termination Style
    SMD/SMT
    Ripple Current
    700 mA
    Product Category
    Aluminium Organic Polymer Capacitors
    RoHS
    Details
    Brand
    Rubycon
    Product
    Aluminum Hybrid Polymer Capacitors
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Capacitors
    Voltage Rating DC
    63 VDC
    Dissipation Factor DF
    0.08
    ESR
    120 mOhms
