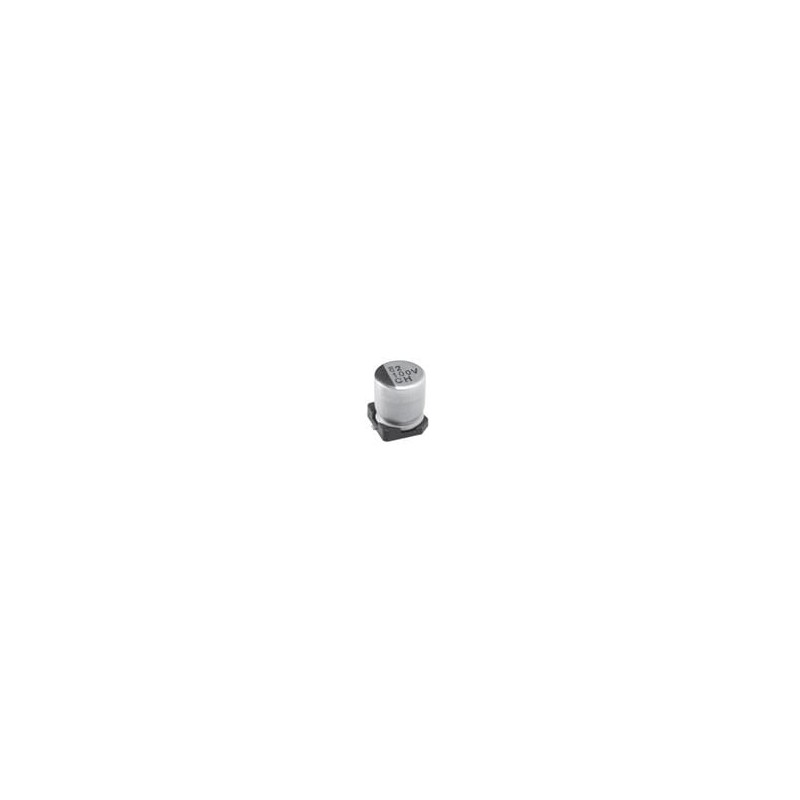

10 pcs : UCH1V331MCS1GS - Aluminium Electrolytic Capacitors - SMD 35V 330uf 20% SMD, high vibration
    • 10 pcs : UCH1V331MCS1GS - Aluminium Electrolytic Capacitors - SMD 35V 330uf 20% SMD, high vibration

    10 pcs : UCH1V331MCS1GS - Aluminium Electrolytic Capacitors - SMD 35V 330uf 20% SMD, high vibration

    10(electronicpartsUK)647UCH1V331MCS1GS
    NICHICON
    10 pcs : UCH1V331MCS1GS - Aluminium Electrolytic Capacitors - SMD 35V 330uf 20% SMD, high vibration
    £43.23
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    UCH Aluminum Electrolytic Capacitors Nichicon UCH Aluminum Electrolytic Capacitors are chip-type devices that offer high reliability and low-temperature ESR specification (6Ω ESR at -40°C/400kHz). These surface-mount capacitors feature a temperature range of -40°C to +125°C and a rated voltage range of 35V. They have a rated capacitance range of 47µF to 100µF with ±20% capacitance tolerance at 120Hz, 20°C. Nichicon UCH Aluminum Electrolytic Capacitors are RoHS compliant (2011/65/EU) and suitable for use in automotive harsh environments such as engine control units and drive systems control units.
    Product Details
    NICHICON
    10(electronicpartsUK)647UCH1V331MCS1GS
    UCH1V331MCS1GS
    10 Items

    Data sheet

    Manufacturer
    NICHICON
    Capacitance
    330 uF
    Tolerance
    20 %
    Leakage current
    115.5 uA
    Diameter
    10 mm
    Length
    10 mm
    Series
    UCH
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Life
    2000 Hour
    Type
    Chip Type
    Product Type
    Electrolytic Capacitors
    Termination Style
    SMD/SMT
    Ripple Current
    500 mA
    Product Category
    Aluminium Electrolytic Capacitors - SMD
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Nichicon
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Capacitors
    Voltage Rating DC
    35 VDC
    Dissipation Factor DF
    0.16
    ESR
    150 mOhms
