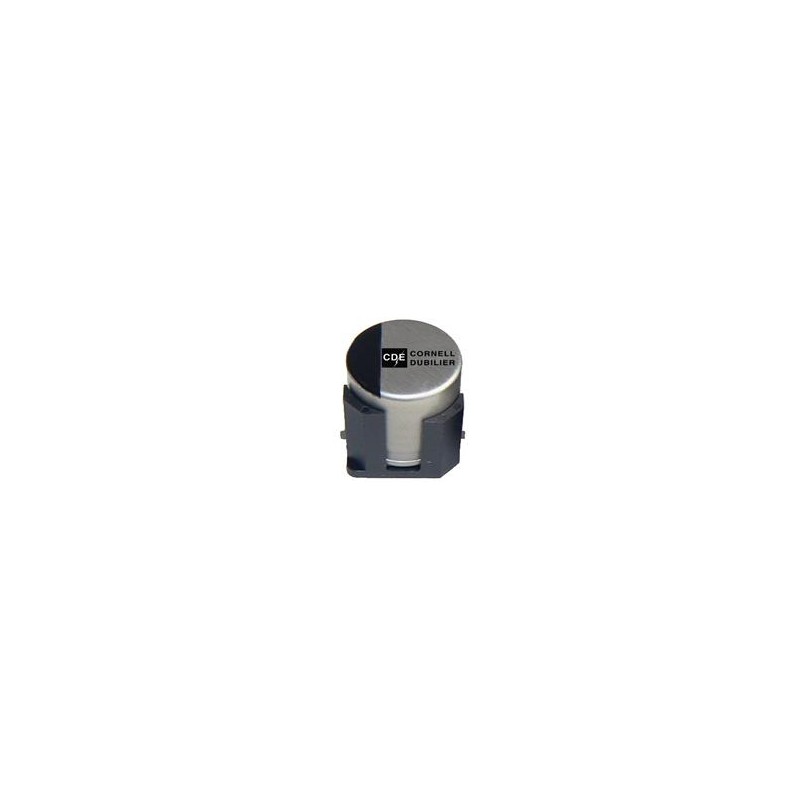

10 pcs : HZA337M025G24VT-F - Aluminium Electrolytic Capacitors - SMD 330uF 25V AEC-Q200
    • 10 pcs : HZA337M025G24VT-F - Aluminium Electrolytic Capacitors - SMD 330uF 25V AEC-Q200

    10 pcs : HZA337M025G24VT-F - Aluminium Electrolytic Capacitors - SMD 330uF 25V AEC-Q200

    10(AllpartsUK)598HZA337M025G24VTF
    10 pcs : HZA337M025G24VT-F - Aluminium Electrolytic Capacitors - SMD 330uF 25V AEC-Q200
    £66.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    HZA_V High Vibration SMT Hybrid Capacitors Cornell Dublier HZA_V High Vibration SMT Hybrid Polymer-Aluminum Electrolytic Capacitors are able to withstand a 30G vibration test and are a combination of solid polymer aluminum technology with wet aluminum electrolytic technology. This produces a surface mount capacitor with a 10,000-hour life, low leakage current, high voltage capability, very low ESR, and small case sizes. The HZA_V components are ideal for high-density PC board designs. Vertical cylindrical cases facilitate automatic mounting and feature high reflow soldering temperature capability.
    Product Details
    10(AllpartsUK)598HZA337M025G24VTF
    HZA337M025G24VT-F
    10 Items

    Data sheet

    Manufacturer
    Cornell Dubilier - CDE
    Capacitance
    330 uF
    Tolerance
    20 %
    Leakage current
    82.5 uA
    Diameter
    10 mm
    Width
    10.2 mm
    Height
    12 mm
    Length
    10.2 mm
    Series
    HZA-V
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 55 C
    Life
    10000 Hour
    Type
    Surface Mount Vertical Can
    Product Type
    Electrolytic Capacitors
    Termination Style
    SMD/SMT
    Ripple Current
    2.5 A
    Product Category
    Aluminium Electrolytic Capacitors - SMD
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Cornell Dubilier - CDE
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Capacitors
    Unit Weight
    2.586 g
    Voltage Rating DC
    25 VDC
    Dissipation Factor DF
    0.14
    ESR
    20 mOhms
