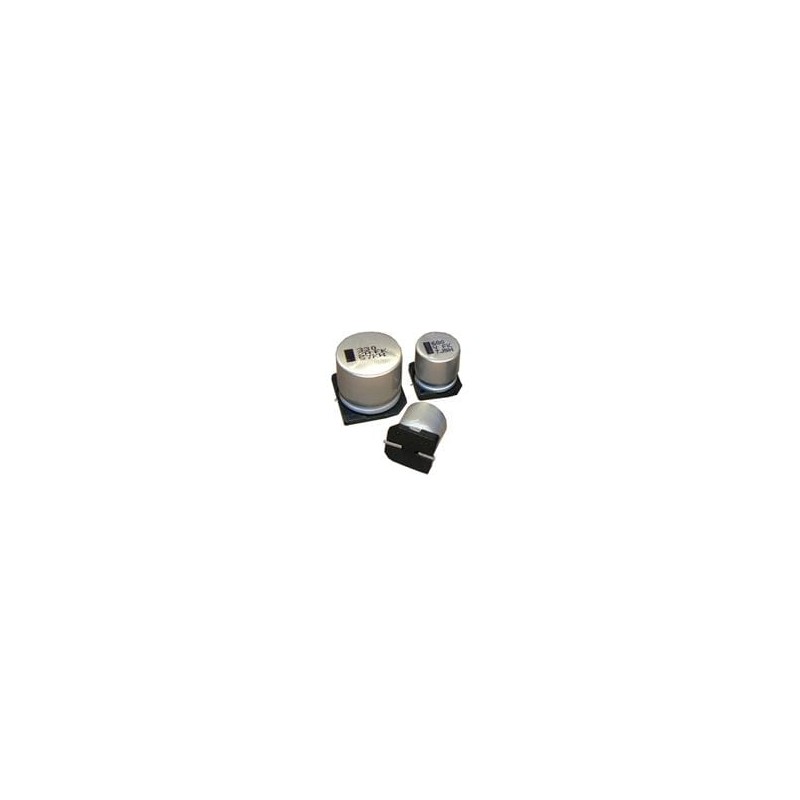

10 pcs : AFK226M16C12T-F - Aluminium Electrolytic Capacitors - SMD 22uF 16V 20% AEC-Q200
    • 10 pcs : AFK226M16C12T-F - Aluminium Electrolytic Capacitors - SMD 22uF 16V 20% AEC-Q200

    10 pcs : AFK226M16C12T-F - Aluminium Electrolytic Capacitors - SMD 22uF 16V 20% AEC-Q200

    10(AllpartsUK)598AFK226M16C12TF
    10 pcs : AFK226M16C12T-F - Aluminium Electrolytic Capacitors - SMD 22uF 16V 20% AEC-Q200
    £28.96
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    SMD Aluminum Electrolytic Capacitors Cornell Dubilier SMD Aluminum Electrolytic Capacitor for filtering, bypassing, and power supply decoupling features an operating temperature range of -40°C to +105°C and 1000 to 5000 hours of load life. With low impedance characteristics, the Cornell Dubilier SMD Aluminum Electrolytic Capacitor has a small footprint and is ideal for high-density PC board packaging.
    Product Details
    10(AllpartsUK)598AFK226M16C12TF
    AFK226M16C12T-F
    10 Items

    Data sheet

    Manufacturer
    Cornell Dubilier - CDE
    Capacitance
    22 uF
    Tolerance
    20 %
    Leakage current
    3.5 uA
    Diameter
    5 mm
    Width
    5.8 mm
    Height
    6.5 mm
    Length
    5.8 mm
    Series
    AFK
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 55 C
    Life
    2000 Hour
    Type
    SMT Aluminum Electrolytic Capacitors
    Product Type
    Electrolytic Capacitors
    Termination Style
    SMD/SMT
    Ripple Current
    160 mA
    Product Category
    Aluminium Electrolytic Capacitors - SMD
    Lead Spacing
    1.5 mm
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Cornell Dubilier - CDE
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Capacitors
    Unit Weight
    753.510 mg
    Voltage Rating DC
    16 VDC
    Dissipation Factor DF
    0.16
    ESR
    700 mOhms
