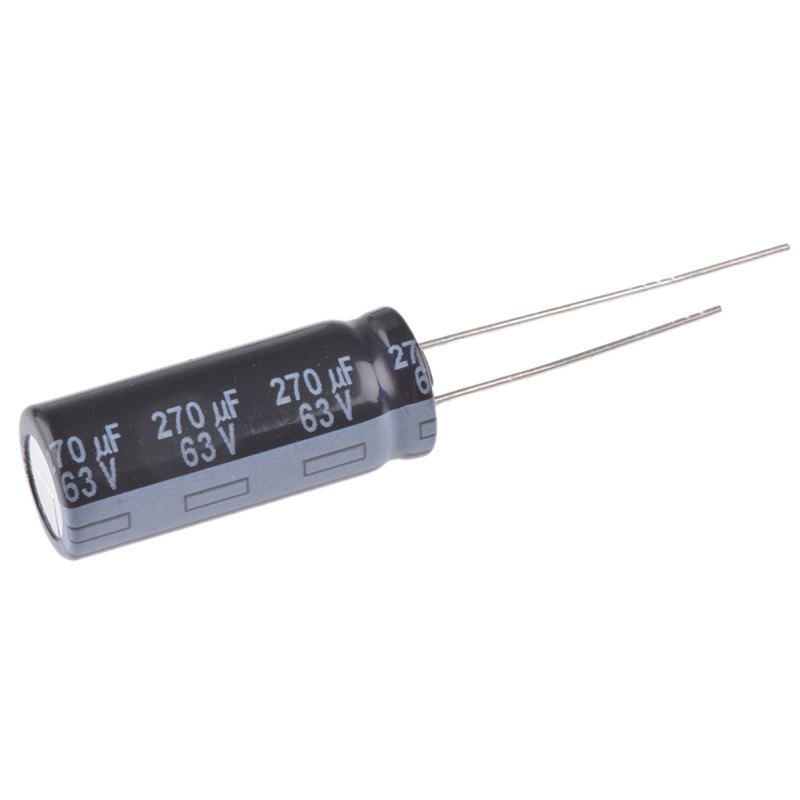

20 pcs - EEUFR1J271L Panasonic 270μF Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - EEUFR1J271L
    • 20 pcs - EEUFR1J271L Panasonic 270μF Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - EEUFR1J271L

    20 pcs - EEUFR1J271L Panasonic 270μF Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - EEUFR1J271L

    20(Allparts)7568354
    PANASONIC
    20 pcs - EEUFR1J271L Panasonic 270μF Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - EEUFR1J271L
    £56.09
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    FR Series 35 V to 63 VPanasonic FR Series Type A electrolytic capacitors feature low ESR (in line with the FM series). These radial capacitors have excellent endurance at +105°C between 5000 hours and 10000 hours (dependent on case size).High reliabilityLong lifeLow impedanceHigh ripple currentApplicationsPanasonic FR Series Type A electrolytic capacitors are recommended for use in industrial instruments due to their high reliability. Please note, they are not suitable for automotive applications.
    Product Details
    PANASONIC
    20(Allparts)7568354
    EEUFR1J271L
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    270µF
    Tolerance
    ±20%
    Dimensions
    10 (Dia.) x 25mm
    Leakage current
    ≤0.01 CV (After 2 min) μA
    Diameter
    10mm
    Height
    25mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    FR
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Radial, Through Hole
    Minimum Operating Temperature
    -40°C
    Voltage
    63V dc
    Technology
    Aluminium Electrolytic
    Lifetime
    10000h
    Equivalent Series Resistance
    33mΩ
    Ripple Current
    1500mArms
    Polarised
    Polar
    Lead Pitch
    5mm
