Product Details

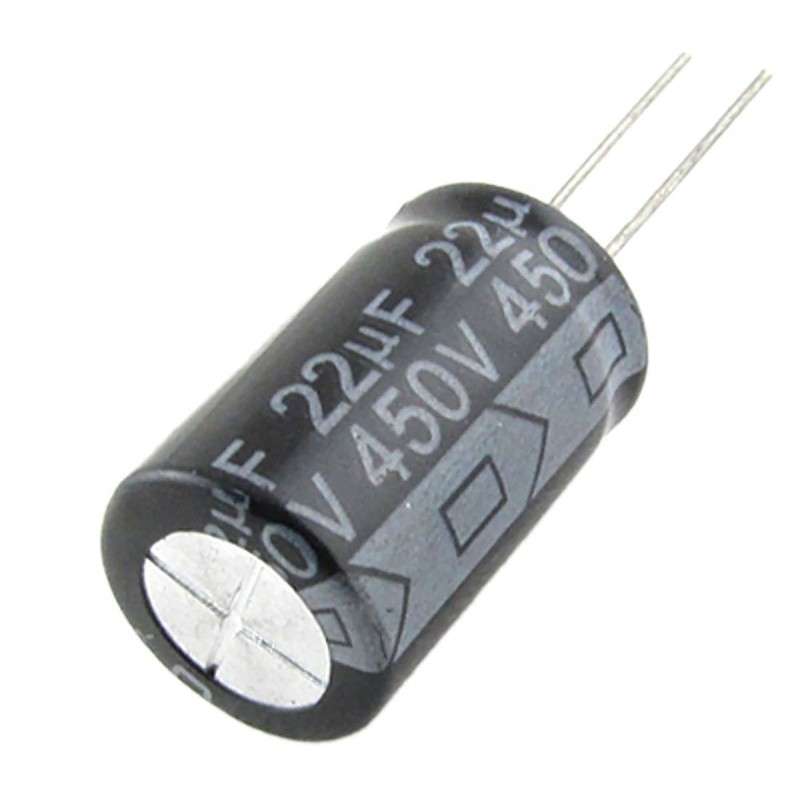

10(Allparts)7260735
450BXC22MEFC16X20
10 Items
Data sheet
- Manufacturer
- Rubycon
- Capacitance
- 22µF
- Tolerance
- ±20%
- Dimensions
- 16 (Dia.) x 20mm
- Leakage current
- 0.02 CV or 25 μA @ 5 min (CV >, 1000), 0.03 CV or 15 μA @ 5 min (CV <,- 1000), 0.04 CV or 100 μA @ 1 min (CV >, 1000), 0.1 CV or 40 μA @ 1 min (CV <,- 1000)
- Diameter
- 16mm
- Height
- 20mm
- A-Supplier
- Allparts-UK/15/R-10
- Series
- BXC
- Maximum Operating Temperature
- +105°C
- Mounting Type
- Radial, Through Hole
- Minimum Operating Temperature
- -25°C
- Voltage
- 450V dc
- Technology
- Aluminium Electrolytic
- Lifetime
- 12000h
- Ripple Current
- 730mA
- Lead Pitch
- 7.5mm
