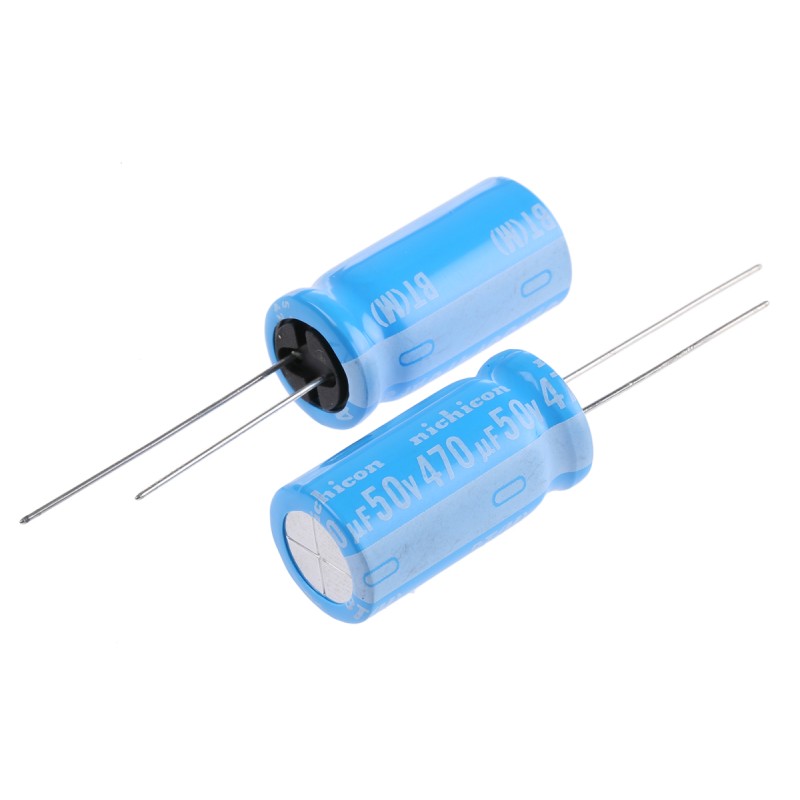

10 pcs - UBT1H471MHD8 Nichicon 470μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - UBT1H471MHD8
    • 10 pcs - UBT1H471MHD8 Nichicon 470μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - UBT1H471MHD8

    10 pcs - UBT1H471MHD8 Nichicon 470μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - UBT1H471MHD8

    10(Allparts)7621752
    NICHICON
    10 pcs - UBT1H471MHD8 Nichicon 470μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - UBT1H471MHD8
    £44.06
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    BT Series High Temperature (PET Sleeve)Nichicon BT Series Aluminium Electrolytic Capacitors are high reliability, low impedance and a miniature size that offer a 10000-hour load life. The BT series features a high temperature range, a wide rated voltage range, and high ripple current. Suitable for automobile electronics where heavy-duty services are indispensable.Features & Benefits:High reliabilityHigh ripple currentLong life up to 10,000 hours
    Product Details
    NICHICON
    10(Allparts)7621752
    UBT1H471MHD8
    10 Items

    Data sheet

    Manufacturer
    NICHICON
    Capacitance
    470µF
    Tolerance
    ±20%
    Dimensions
    12.5 x 25mm
    Leakage current
    4 μA
    Diameter
    12.5mm
    Height
    25mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    BT
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Radial, Through Hole
    Minimum Operating Temperature
    -40°C
    Voltage
    50V dc
    Technology
    Aluminium Electrolytic
    Lifetime
    10000h
    Equivalent Series Resistance
    55mΩ
    Ripple Current
    1650mArms
    Lead Pitch
    5mm
