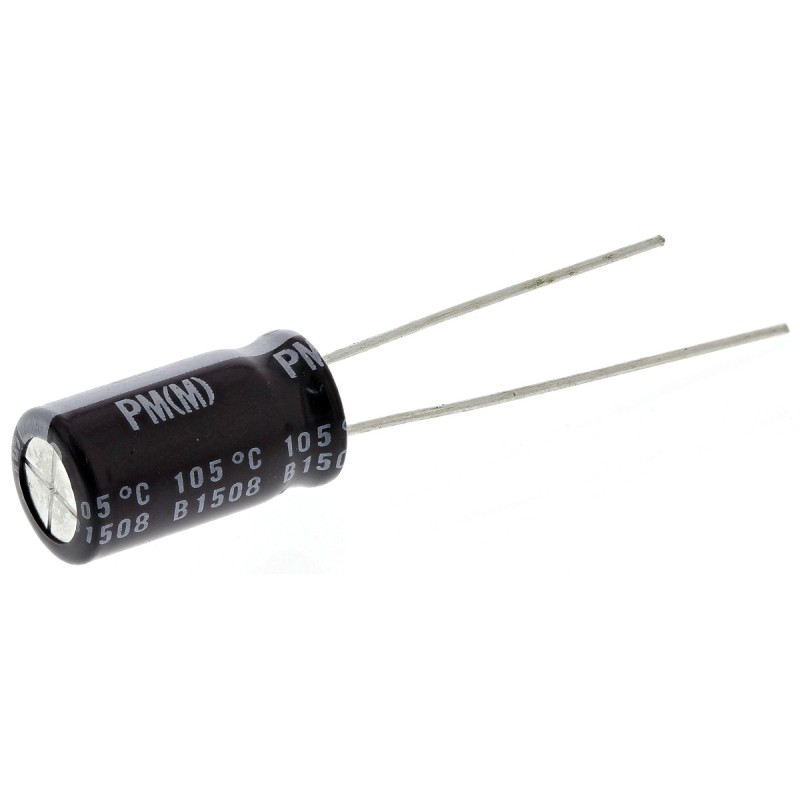

20 pcs - UPM1E221MPD Nichicon 220μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - UPM1E221MPD
    • 20 pcs - UPM1E221MPD Nichicon 220μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - UPM1E221MPD

    20 pcs - UPM1E221MPD Nichicon 220μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - UPM1E221MPD

    20(electronicparts)5201494
    NICHICON
    20 pcs - UPM1E221MPD Nichicon 220μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - UPM1E221MPD
    £37.24
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Nichicon PM Series Electrolytic CapacitorsNichicon PM Series Aluminium Electrolytic Capacitors are high reliability, low impedance products that have a 5000-hour load life and are compliant to the RoHS directive (2011/65/EU). The PM series features a wide temperature range, a rated voltage range of 6.3 V to 450 V, and high ripple current.Features & Benefits:High reliabilityHigh ripple currentLong life up to 5000 hoursLead free reflow solderingExtremely low impedance
    Product Details
    NICHICON
    20(electronicparts)5201494
    UPM1E221MPD
    10 Items

    Data sheet

    Manufacturer
    NICHICON
    Capacitance
    220µF
    Tolerance
    ±20%
    Dimensions
    8 (Dia.) x 15mm
    Leakage current
    4 μA
    Diameter
    8mm
    Height
    15mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    PM
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Radial, Through Hole
    Minimum Operating Temperature
    -55°C
    Voltage
    25V dc
    Technology
    Aluminium Electrolytic
    Lifetime
    3000h
    Ripple Current
    455mA
    Lead Pitch
    3.5mm
