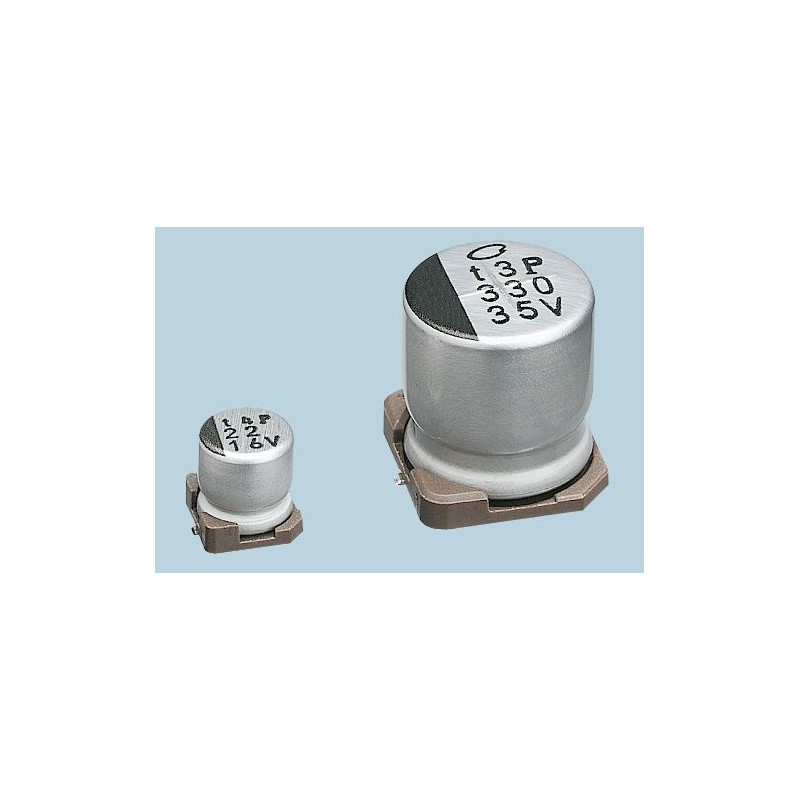

50 pcs - UWT0J470MCL1GB Nichicon 47μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - UWT0J470MCL1GB
    • 50 pcs - UWT0J470MCL1GB Nichicon 47μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - UWT0J470MCL1GB

    50 pcs - UWT0J470MCL1GB Nichicon 47μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - UWT0J470MCL1GB

    50(electronicparts)5201826
    NICHICON
    50 pcs - UWT0J470MCL1GB Nichicon 47μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - UWT0J470MCL1GB
    £36.93
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Aluminium Electrolytic Capacitor, WT Series, 105°CChip type operating over wide temperature range of to –55 to +105°C.Rated Voltage Range of 4 to 50V Rated Capacitance Range of 0.1 to 1500μFDesigned for surface mounting on high density PC board.Applicable to automatic mounting machine fed with carrier tape.Compliant to the RoHS directive (2011/65/EU).Lead-free version of WT series
    Product Details
    NICHICON
    50(electronicparts)5201826
    UWT0J470MCL1GB
    10 Items

    Data sheet

    Manufacturer
    NICHICON
    Capacitance
    47µF
    Tolerance
    ±20%
    Dimensions
    5 (Dia.) x 5.4mm
    Leakage current
    3 μA
    Diameter
    5mm
    Height
    5.4mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    WT
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -55°C
    Voltage
    6.3V dc
    Technology
    Aluminium Electrolytic
    Lifetime
    1000h
    Ripple Current
    36mA
    Polarised
    Polar
