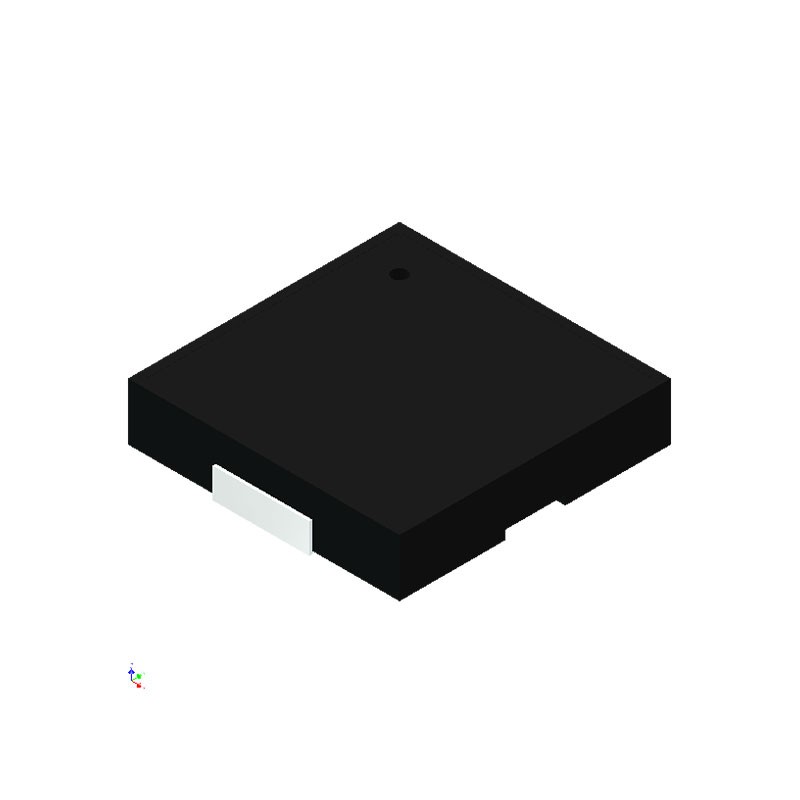

    1 pcs : SMT-0952-T-5V-R - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 5.2kHz 70dB @ 5V, 10cm Surface Mount Solder Pads
    • 1 pcs : SMT-0952-T-5V-R - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 5.2kHz 70dB @ 5V, 10cm Surface Mount Solder Pads
    • 1 pcs : SMT-0952-T-5V-R - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 5.2kHz 70dB @ 5V, 10cm Surface Mount Solder Pads

    1 pcs : SMT-0952-T-5V-R - Buzzers Transducer, Externally Driven Piezo 5 V 3mA 5.2kHz 70dB @ 5V, 10cm Surface Mount Solder Pads

    electronicpartsUKDGSMT0952T5VR
    £15.65
    Delivery: 7-10 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 5 V 3mA 5.2kHz 70dB @ 5V, 10cm Surface Mount Solder Pads
    Product Details
    PUI Audio, Inc.
    electronicpartsUKDGSMT0952T5VR
    SMT-0952-T-5V-R
    3 Items

    Data sheet

    Operating temperature
    -30°C ~ 70°C
    Part status
    Active
    Frequency
    5.2kHz
    Series
    SMT-09
    Mounting Type
    Surface Mount
    Input Type
    Peak-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    1 ~ 25V
    Technology
    Piezo
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Size / Dimension
    0.354' L x 0.354' W (9.00mm x 9.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    70dB @ 5V, 10cm
    Current - Supply
    3mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.079' (2.00mm)
    Voltage - Rated
    5 V
