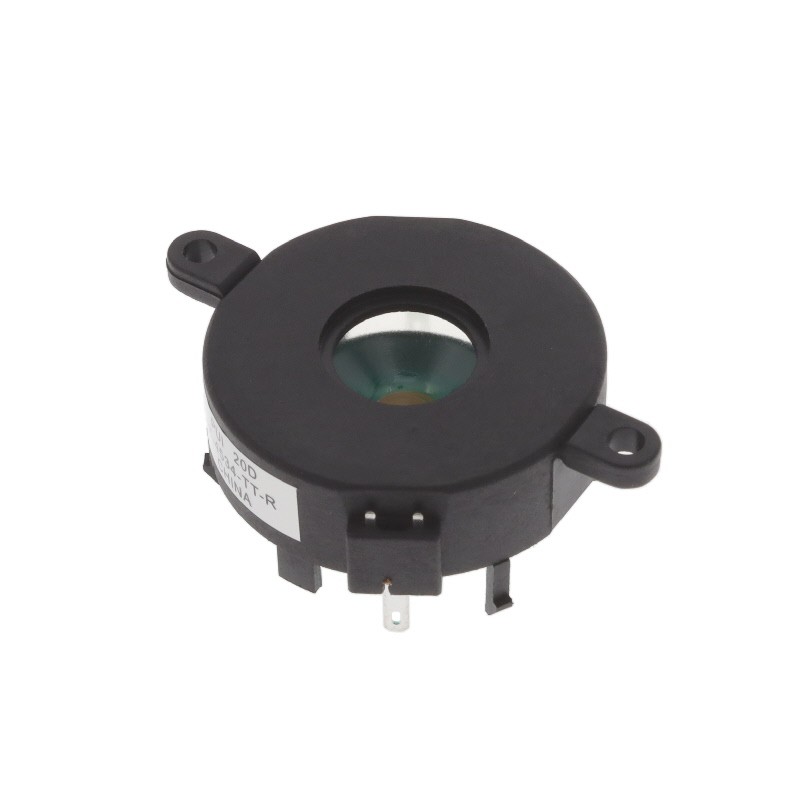

    1 pcs : AT-4534-TT-R - Buzzers Transducer, Externally Driven Piezo 12 V 5.7mA 3.4kHz 110dB @ 12V, 10cm Through Hole PC Pins
    • 1 pcs : AT-4534-TT-R - Buzzers Transducer, Externally Driven Piezo 12 V 5.7mA 3.4kHz 110dB @ 12V, 10cm Through Hole PC Pins
    • 1 pcs : AT-4534-TT-R - Buzzers Transducer, Externally Driven Piezo 12 V 5.7mA 3.4kHz 110dB @ 12V, 10cm Through Hole PC Pins

    1 pcs : AT-4534-TT-R - Buzzers Transducer, Externally Driven Piezo 12 V 5.7mA 3.4kHz 110dB @ 12V, 10cm Through Hole PC Pins

    electronicpartsUKDGAT4534TTR
    £13.38
    Delivery: 7-10 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Buzzers Transducer, Externally Driven Piezo 12 V 5.7mA 3.4kHz 110dB @ 12V, 10cm Through Hole PC Pins
    Product Details
    PUI Audio, Inc.
    electronicpartsUKDGAT4534TTR
    AT-4534-TT-R
    3 Items

    Data sheet

    Operating temperature
    -40°C ~ 105°C
    Part status
    Active
    Frequency
    3.4kHz
    Series
    AT
    Mounting Type
    Through Hole
    Input Type
    Peak-Peak Signal
    Termination
    PC Pins
    Voltage Range
    1 ~ 50V
    Technology
    Piezo
    Packaging
    Tray
    Size / Dimension
    1.772' Dia (45.00mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    110dB @ 12V, 10cm
    Current - Supply
    5.7mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.539' (13.70mm)
    Voltage - Rated
    12 V
    Ingress Protection
    -
