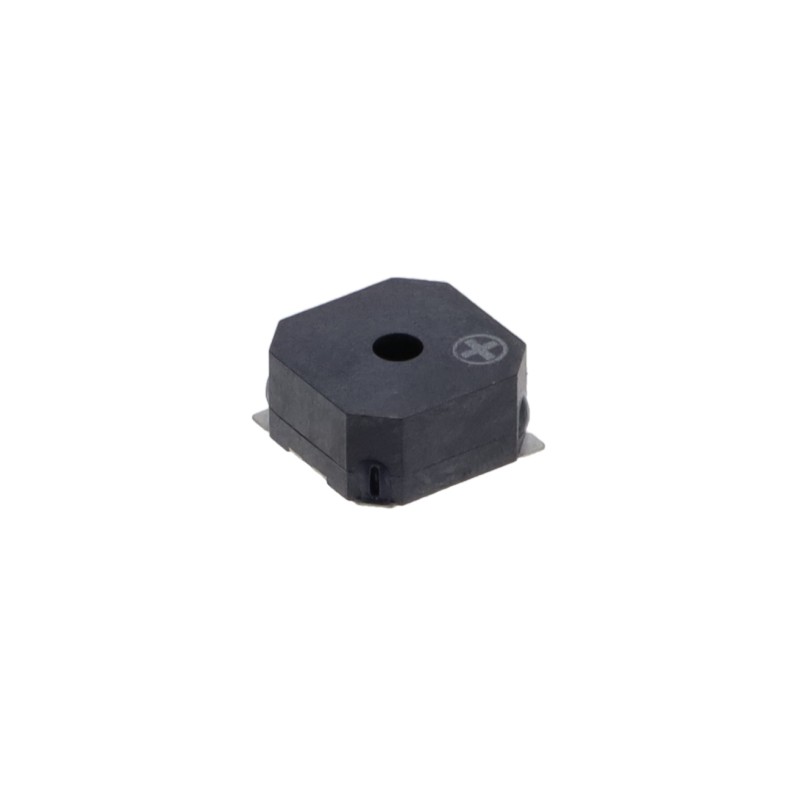

    1 pcs : AST0840MFD-4.4TRQ - Buzzers Transducer, Externally Driven Magnetic 4.4 V 140mA 4kHz 105dB @ 4.4V, 10cm Surface Mount Sol
    • 1 pcs : AST0840MFD-4.4TRQ - Buzzers Transducer, Externally Driven Magnetic 4.4 V 140mA 4kHz 105dB @ 4.4V, 10cm Surface Mount Sol
    • 1 pcs : AST0840MFD-4.4TRQ - Buzzers Transducer, Externally Driven Magnetic 4.4 V 140mA 4kHz 105dB @ 4.4V, 10cm Surface Mount Sol

    1 pcs : AST0840MFD-4.4TRQ - Buzzers Transducer, Externally Driven Magnetic 4.4 V 140mA 4kHz 105dB @ 4.4V, 10cm Surface Mount Sol

    electronicpartsUKDGAST0840MFD44TRQ
    £16.81
    Delivery: 7-10 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Buzzers Transducer, Externally Driven Magnetic 4.4 V 140mA 4kHz 105dB @ 4.4V, 10cm Surface Mount Solder Pads
    Product Details
    Mallory Sonalert Products Inc.
    electronicpartsUKDGAST0840MFD44TRQ
    AST0840MFD-4.4TRQ
    3 Items

    Data sheet

    Operating temperature
    -30°C ~ 70°C
    Part status
    Active
    Frequency
    4kHz
    Series
    AST
    Mounting Type
    Surface Mount
    Input Type
    Peak-Peak Signal
    Termination
    Solder Pads
    Voltage Range
    3.6 ~ 5V
    Technology
    Magnetic
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Size / Dimension
    0.339' L x 0.335' W (8.60mm x 8.50mm)
    Driver Circuitry
    Transducer, Externally Driven
    Operating Mode
    -
    Duration
    -
    Sound Pressure Level (SPL)
    105dB @ 4.4V, 10cm
    Current - Supply
    140mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.177' (4.50mm)
    Voltage - Rated
    4.4 V
    Ingress Protection
    -
