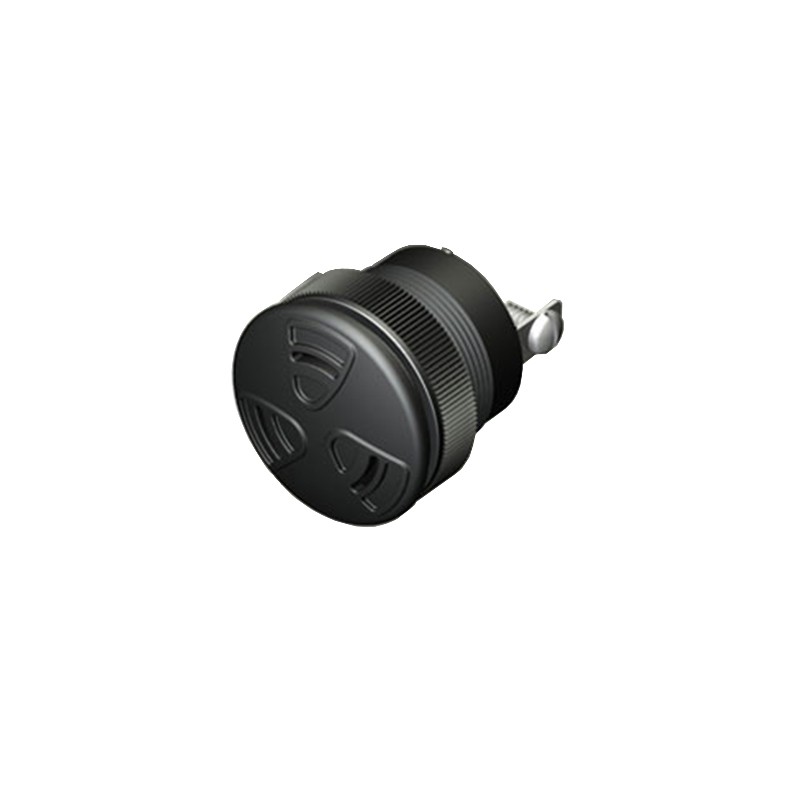

    1 pcs : TMC-86-201-S - Buzzers Indicator, Internally Driven Piezo 2 ~ 15mA 2.9kHz 95dB @ 120V, 61cm Panel Mount Screw Terminal,
    • 1 pcs : TMC-86-201-S - Buzzers Indicator, Internally Driven Piezo 2 ~ 15mA 2.9kHz 95dB @ 120V, 61cm Panel Mount Screw Terminal,

    1 pcs : TMC-86-201-S - Buzzers Indicator, Internally Driven Piezo 2 ~ 15mA 2.9kHz 95dB @ 120V, 61cm Panel Mount Screw Terminal,

    electronicpartsUKDGTMC86201S
    £51.81
    Delivery: 7-10 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Buzzers Indicator, Internally Driven Piezo 2 ~ 15mA 2.9kHz 95dB @ 120V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250' (6.35mm)
    Product Details
    Floyd Bell Inc
    electronicpartsUKDGTMC86201S
    TMC-86-201-S
    3 Items

    Data sheet

    Operating temperature
    -20°C ~ 65°C
    Part status
    Active
    Frequency
    2.9kHz
    Series
    Turbo
    Mounting Type
    Panel Mount
    Input Type
    AC
    Termination
    Screw Terminal, Quick Connect Tab - 0.250' (6.35mm)
    Voltage Range
    30 ~ 120V
    Technology
    Piezo
    Packaging
    Bulk
    Base Product Number
    TMC-86
    Size / Dimension
    1.300' Dia (33.02mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Single Tone
    Sound Pressure Level (SPL)
    95dB @ 120V, 61cm
    Current - Supply
    2 ~ 15mA
    Port Location
    Top
    Approval Agency
    UL, UR
    Height - Seated (Max)
    1.180' (29.97mm)
    Ingress Protection
    IP68 - Dust Tight, Waterproof
