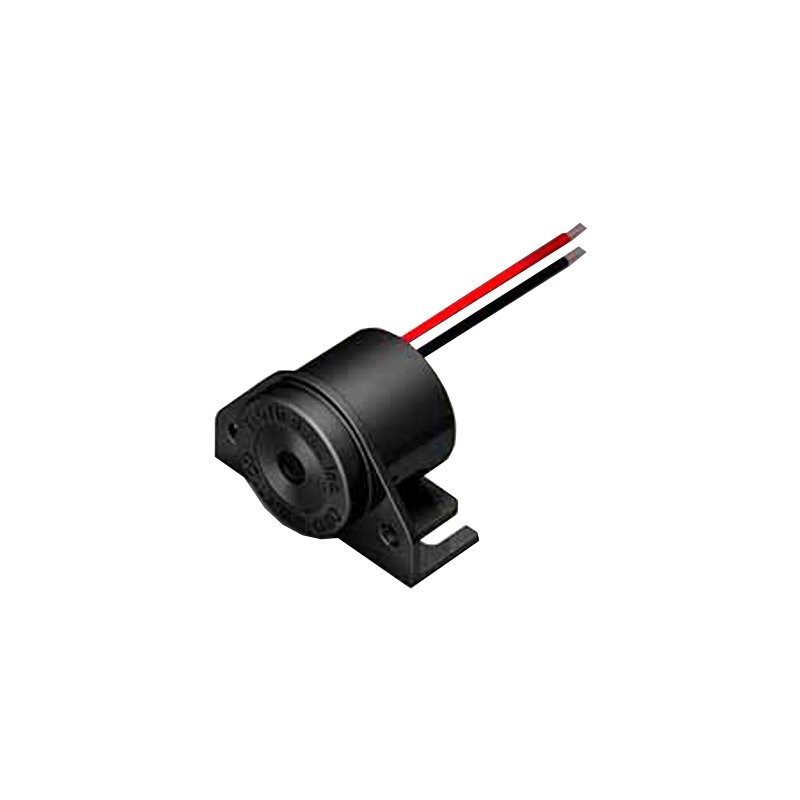

    1 pcs : PM-100 - Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle W
    • 1 pcs : PM-100 - Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle W

    1 pcs : PM-100 - Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle W

    electronicpartsUKDGPM100
    £39.22
    Delivery: 7-10 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle Wire Leads
    Product Details
    Floyd Bell Inc
    electronicpartsUKDGPM100
    PM-100
    3 Items

    Data sheet

    Operating temperature
    -20°C ~ 65°C
    Part status
    Active
    Frequency
    2.9kHz
    Series
    M-80/M-100
    Mounting Type
    Panel Mount, Flange, Right Angle
    Input Type
    DC
    Termination
    Wire Leads
    Voltage Range
    3 ~ 6V
    Technology
    Piezo
    Packaging
    Bulk
    Size / Dimension
    1.800' L x 1.070' W (45.72mm x 27.18mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Single Tone
    Sound Pressure Level (SPL)
    102dB @ 6V, 61cm
    Current - Supply
    10 ~ 60mA
    Port Location
    Side
    Approval Agency
    UL, UR
    Height - Seated (Max)
    1.030' (26.16mm)
    Ingress Protection
    IP68 - Dust Tight, Waterproof
