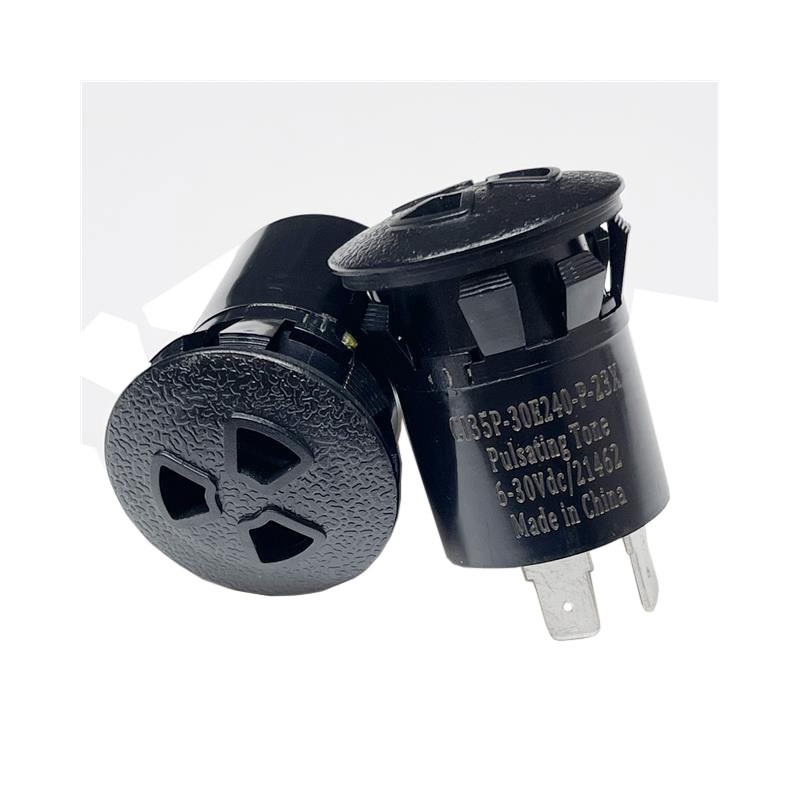

    1 pcs : CI35P-30E240-P-23X - Buzzers Indicator, Internally Driven Piezo 12 V 80mA 2.4kHz 75dB @ 12V, 61cm Panel Mount Terminal B
    • 1 pcs : CI35P-30E240-P-23X - Buzzers Indicator, Internally Driven Piezo 12 V 80mA 2.4kHz 75dB @ 12V, 61cm Panel Mount Terminal B

    1 pcs : CI35P-30E240-P-23X - Buzzers Indicator, Internally Driven Piezo 12 V 80mA 2.4kHz 75dB @ 12V, 61cm Panel Mount Terminal B

    AllpartsUKDGCI35P30E240P23X
    £30.61
    Delivery: 7-10 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Buzzers Indicator, Internally Driven Piezo 12 V 80mA 2.4kHz 75dB @ 12V, 61cm Panel Mount Terminal Block
    Product Details
    Challenge Electronics
    AllpartsUKDGCI35P30E240P23X
    CI35P-30E240-P-23X
    3 Items

    Data sheet

    Operating temperature
    -30°C ~ 65°C
    Part status
    Active
    Frequency
    2.4kHz
    Series
    -
    Mounting Type
    Panel Mount
    Input Type
    DC
    Termination
    Terminal Block
    Voltage Range
    6 ~ 30V
    Technology
    Piezo
    Packaging
    Tray
    Size / Dimension
    1.142' Dia (29.00mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Pulse
    Duration
    -
    Sound Pressure Level (SPL)
    75dB @ 12V, 61cm
    Current - Supply
    80mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    2.148' (54.55mm)
    Voltage - Rated
    12 V
    Ingress Protection
    IP67 - Dust Tight, Waterproof
