1 pcs : PM-100 - Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle W
  • 1 pcs : PM-100 - Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle W

1 pcs : PM-100 - Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle W

electronicparts-UK/DG/PM-100
£39.22
Quantity
Out-of-Stock

Description

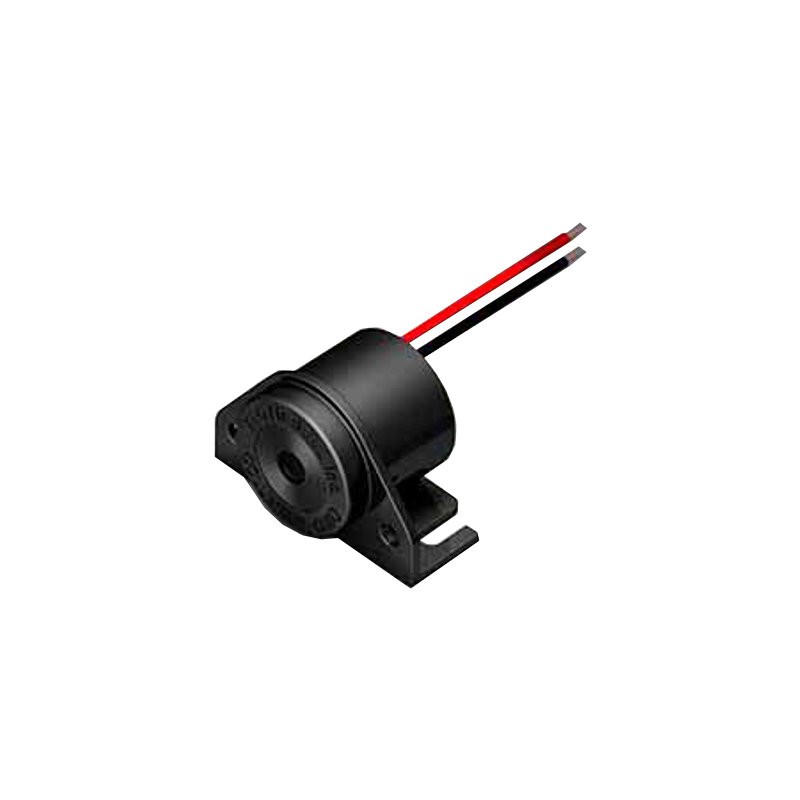

Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount, Flange, Right Angle Wire Leads
Product Details
Floyd Bell Inc
electronicparts-UK/DG/PM-100
PM-100

Data sheet

Manufacturer
Floyd Bell Inc
Operating temperature
-20°C ~ 65°C
Part status
Active
Frequency
2.9kHz
Series
M-80/M-100
Mounting Type
Panel Mount, Flange, Right Angle
Input Type
DC
Termination
Wire Leads
Voltage Range
3 ~ 6V
Technology
Piezo
Packaging
Bulk
Size / Dimension
1.800' L x 1.070' W (45.72mm x 27.18mm)
Driver Circuitry
Indicator, Internally Driven
Operating Mode
Single Tone
Sound Pressure Level (SPL)
102dB @ 6V, 61cm
Current - Supply
10 ~ 60mA
Port Location
Side
Approval Agency
UL, UR
Height - Seated (Max)
1.030' (26.16mm)
Ingress Protection
IP68 - Dust Tight, Waterproof
