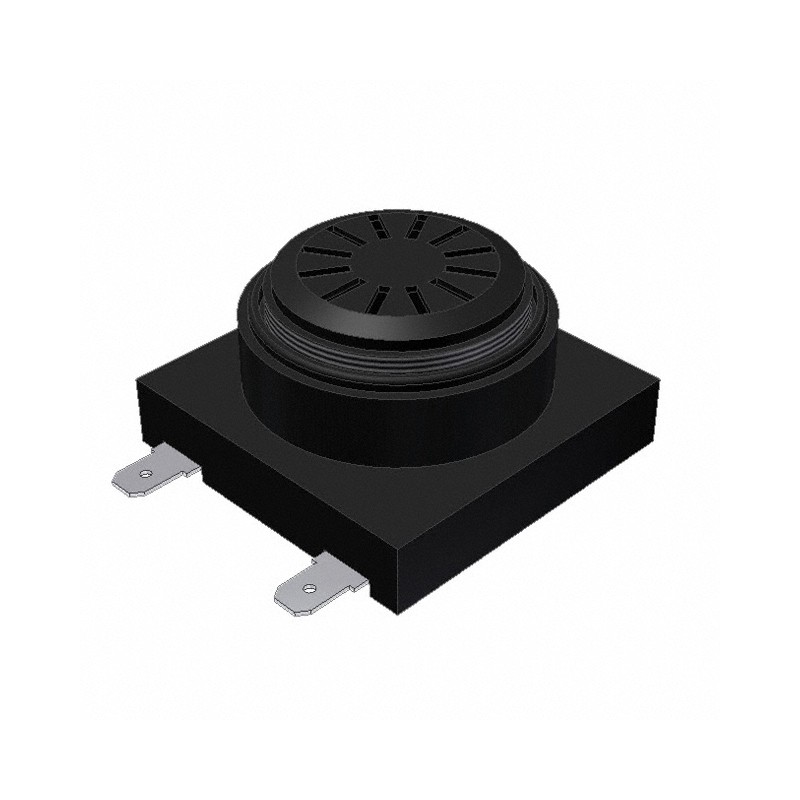

    1 pcs : X-4028-P-C32-R - Buzzers Indicator, Internally Driven Piezo 32 V 22mA 2.8kHz 105dB @ 32V, 10cm Panel Mount Screw Termina
    • 1 pcs : X-4028-P-C32-R - Buzzers Indicator, Internally Driven Piezo 32 V 22mA 2.8kHz 105dB @ 32V, 10cm Panel Mount Screw Termina

    1 pcs : X-4028-P-C32-R - Buzzers Indicator, Internally Driven Piezo 32 V 22mA 2.8kHz 105dB @ 32V, 10cm Panel Mount Screw Termina

    Allparts-UK/DG/X-4028-P-C32-R
    £30.38
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Indicator, Internally Driven Piezo 32 V 22mA 2.8kHz 105dB @ 32V, 10cm Panel Mount Screw Terminal, Quick Connect Tab - 0.187' (4.75mm)
    Product Details
    PUI Audio, Inc.
    Allparts-UK/DG/X-4028-P-C32-R
    X-4028-P-C32-R
    10 Items

    Data sheet

    Manufacturer
    PUI Audio, Inc.
    Operating temperature
    -30°C ~ 80°C
    Part status
    Active
    Frequency
    2.8kHz
    Series
    X
    Mounting Type
    Panel Mount
    Input Type
    DC
    Termination
    Screw Terminal, Quick Connect Tab - 0.187' (4.75mm)
    Voltage Range
    3 ~ 32V
    Technology
    Piezo
    Packaging
    Bulk
    Size / Dimension
    1.575' L x 1.575' W (40.00mm x 40.00mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    105dB @ 32V, 10cm
    Current - Supply
    22mA
    Port Location
    Side
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.925' (23.50mm)
    Voltage - Rated
    32 V
