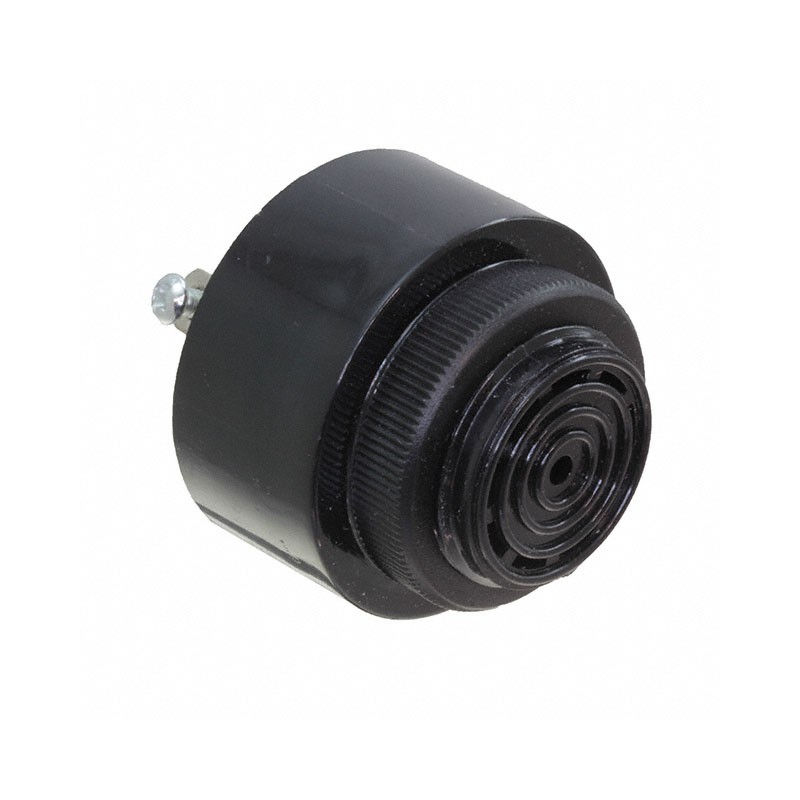

    1 pcs : PB-4333N-1 - Buzzers Indicator, Internally Driven Piezo 24 V 20mA 2.9kHz 90dB @ 24V, 30cm Panel Mount Screw Terminal, Qu
    • 1 pcs : PB-4333N-1 - Buzzers Indicator, Internally Driven Piezo 24 V 20mA 2.9kHz 90dB @ 24V, 30cm Panel Mount Screw Terminal, Qu

    1 pcs : PB-4333N-1 - Buzzers Indicator, Internally Driven Piezo 24 V 20mA 2.9kHz 90dB @ 24V, 30cm Panel Mount Screw Terminal, Qu

    Allparts-UK/DG/PB-4333N-1
    £29.33
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Buzzers Indicator, Internally Driven Piezo 24 V 20mA 2.9kHz 90dB @ 24V, 30cm Panel Mount Screw Terminal, Quick Connect Tab - 0.256' (6.50mm)
    Product Details
    Soberton Inc.
    Allparts-UK/DG/PB-4333N-1
    PB-4333N-1
    10 Items

    Data sheet

    Manufacturer
    Soberton Inc.
    Operating temperature
    -20°C ~ 60°C
    Part status
    Active
    Frequency
    2.9kHz
    Series
    PB
    Mounting Type
    Panel Mount
    Input Type
    DC
    Termination
    Screw Terminal, Quick Connect Tab - 0.256' (6.50mm)
    Technology
    Piezo
    Packaging
    Tray
    Size / Dimension
    1.693' Dia (43.00mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    90dB @ 24V, 30cm
    Current - Supply
    20mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    1.319' (33.50mm)
    Voltage - Rated
    24 V
    Ingress Protection
    -
