    1 pcs : PK-27N35EPQ - Buzzers Indicator, Internally Driven Piezo 12 V 15mA 3.5kHz 90dB @ 12V, 30cm Panel Mount Screw Terminal, Q
    • 1 pcs : PK-27N35EPQ - Buzzers Indicator, Internally Driven Piezo 12 V 15mA 3.5kHz 90dB @ 12V, 30cm Panel Mount Screw Terminal, Q

    1 pcs : PK-27N35EPQ - Buzzers Indicator, Internally Driven Piezo 12 V 15mA 3.5kHz 90dB @ 12V, 30cm Panel Mount Screw Terminal, Q

    Allparts-UK/DG/PK-27N35EPQ
    £27.82
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description

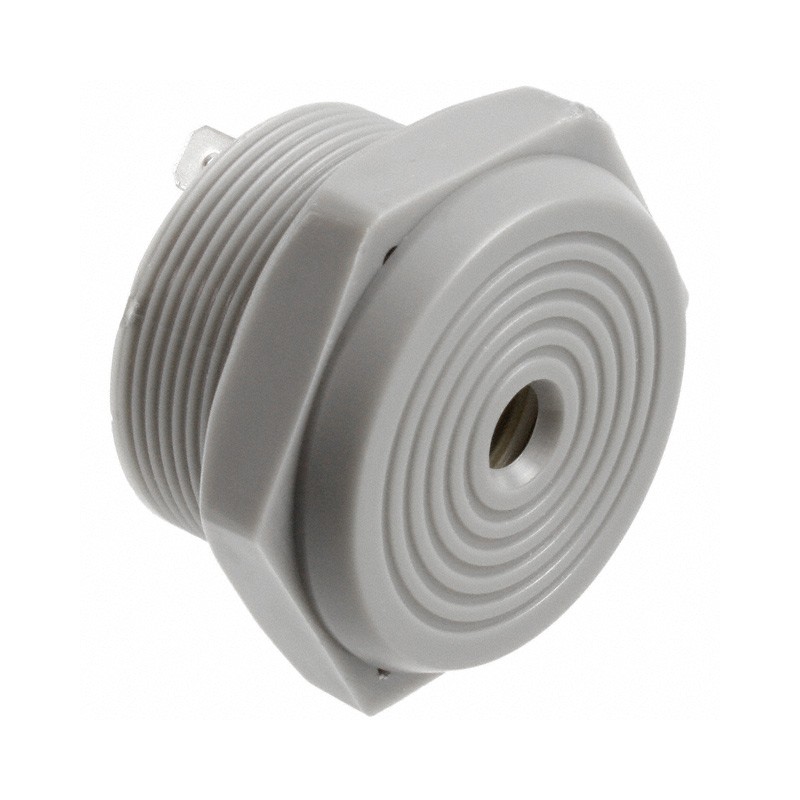

    Buzzers Indicator, Internally Driven Piezo 12 V 15mA 3.5kHz 90dB @ 12V, 30cm Panel Mount Screw Terminal, Quick Connect Tab - 0.189' (4.80mm)
    Product Details
    Mallory Sonalert Products Inc.
    Allparts-UK/DG/PK-27N35EPQ
    PK-27N35EPQ
    10 Items

    Data sheet

    Manufacturer
    Mallory Sonalert Products Inc.
    Operating temperature
    -20°C ~ 70°C
    Part status
    Active
    Frequency
    3.5kHz
    Series
    PK
    Mounting Type
    Panel Mount
    Input Type
    DC
    Termination
    Screw Terminal, Quick Connect Tab - 0.189' (4.80mm)
    Voltage Range
    3 ~ 28V
    Technology
    Piezo
    Packaging
    Bulk
    Size / Dimension
    1.437' Dia (36.50mm)
    Driver Circuitry
    Indicator, Internally Driven
    Operating Mode
    Single Tone
    Duration
    -
    Sound Pressure Level (SPL)
    90dB @ 12V, 30cm
    Current - Supply
    15mA
    Port Location
    Top
    Approval Agency
    -
    Ratings
    -
    Height - Seated (Max)
    0.933' (23.70mm)
    Voltage - Rated
    12 V
